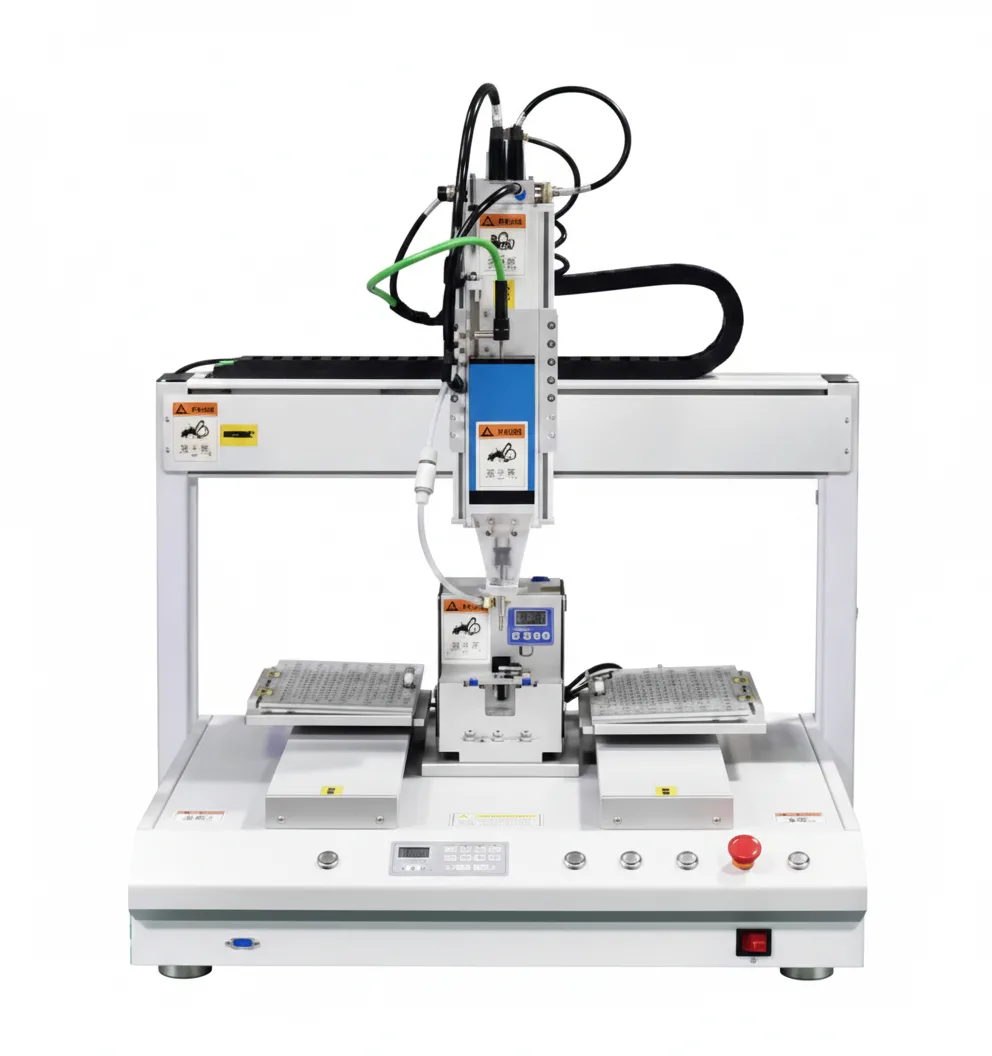

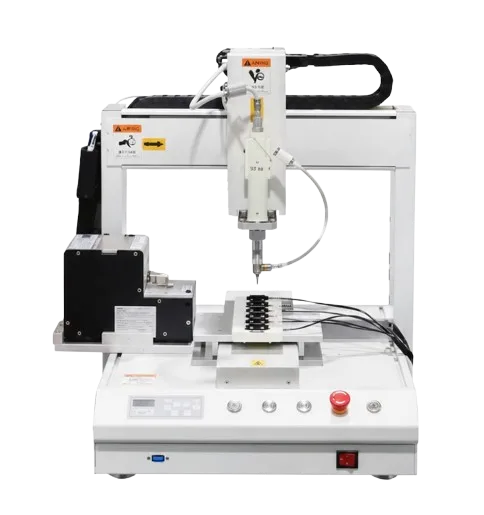

Adsorption type automatic screw robot

Screw Machine

All models are optional: stepper motor / closed loop motor / servo motor + timing belt / ball screw / grinding screw configuration

The vacuum generator is used to generate negative pressure to directly act on the screwdriver head to suck the screw vertically.

Easily solve the problem of locking screws in short screws and special-shaped parts.

It is suitable for all kinds of screws, and has no requirements on the shape and length.

It is suitable for automatic assembly production lines, including industry, automobile parts assembly, compressors, home appliances, hardware, communication equipment, automotive electronics and other major industries.

Applicable Screws

Flat screw

Philips screw

Torx screw

Hexagon socket screw

Triangle screw

H-slot screw

Screw nut

Special-shaped screws

Automatic Locking Screw Robot

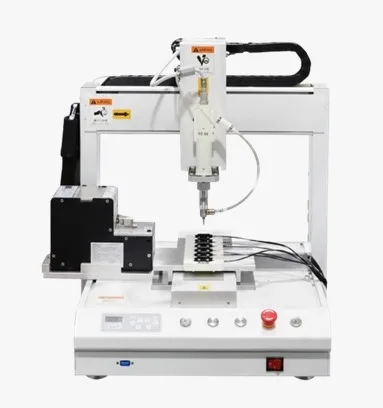

Single-station Adsorption type automatic locking screw robot

Automatically absorb screws, tighten screws automatically.
Continuous feeding can provide screw conveying function and anti-missing function.

Double-station adsorption type automatic locking screw robot

Double Y-axis work platform, alternately lock screws.
Constant torque, with screw sliding teeth, floating lock, alarm function.

Double-station adsorption type automatic locking screw robot

Double station double electric batch cycle lock payment.
Double electric screwdriver can lock different screws separately.

Automatic Locking Screw Robot

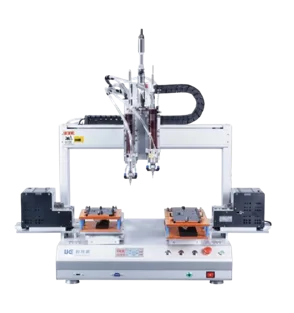

Double head double feeder screw robot

Double head double station alternate loading and unloading

Applicable to the same product, there are two kinds of screw locking requirements

Floor-standing double-split automatic screw-locking robot

Intelligent servo electric batch with precise torque

Supports locking M0.8-M6.0 screws

Back-to-back automatic locking screw robot

Lockable non-standard screws with gasket screws/screw nut

Double Y-axis station, alternately lock screws

Automatic Locking Screw Robot - Part 2

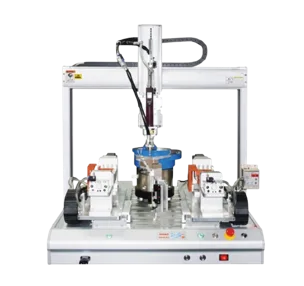

Adsorption rotary lock screw robot

Automatically absorb screws, automatically tighten screws, with rotation lock function

Constant torque with screw sliding teeth, floating lock and alarm function

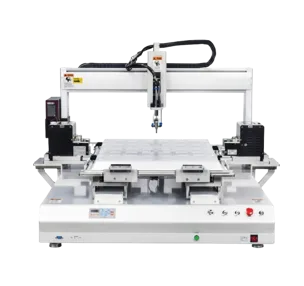

Double guide rail double feed LED light board lock screw robot

Multi-stage speed, multi-stage position, high-speed/low-speed flexible control

The intelligent servo electric screwdriver can be set forward and reverse, and the reverse can loosen the screw and take the screw

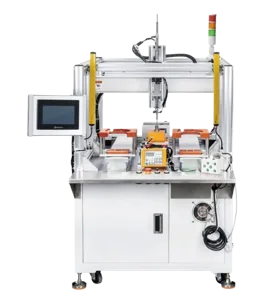

Floor-mounted automatic locking screw robot

Unique and flexible control mode, set torque according to product

Determine the lock in place by angle and torque

Product Catalog - Automated Robots

Servo electric screw lock robot with cutting function

Multi-stage torque setting, real-time computer transmission
Automatic cutting function

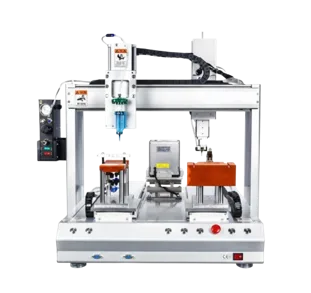

Six-axis back-to-back automatic dispensing lock screw robot

Dispensing first and then locking the screws, no need to transfer process

Reduce 3 labors, increase efficiency by more than 4 times

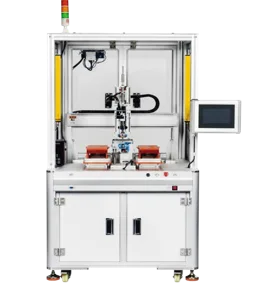

Floor-mounted automatic dispensing lock screw integrated robot

Intelligent servo electric approval, accurate lock payment

Automatic dispensing, automatic locking screw

Automatic Precision Dispenser Specs

Model	automatic precision dispenser
Trip	300300100 / 500300300*100mm, Customizable travel range
Programming mode	Import teaching programming or graphics
Electric screwdriver	Japan HIOS / Intelligent servo electric approval
Control system	SCM + handheld box control
Maximum load	10KG
Moving speed	0~800mm/sec
Lock one screw time	0.6~1.5 seconds
Repeatability accuracy	±0.02mm/Axis
Program record mode	999 groups
Display mode	LCD teaching box
Motor system	Z axis	Servo motor / closed loop motor
Motor system	X/Y axis	Japan precision micro
Drive mode	Z axis	Taiwan silver bar
Drive mode	X/Y axis	Italy Satey synchronous belt
Torque	N.M	0.1–0.55	0.3–1.6
	lb.in	0.9–4.8	2.6–14
	Kgf.cm	1–5.5	3–16
Intelligent servo electric torque (optional)	Power	Torque	RPM	mm	screws
	50W	15kg/0.10.5N·m	0~3000	40	M1.4, M2
	100W	39kg/0.30.9N·m	0~3000	40	M1.4, M3
	200W	518kg/0.51.8N·m	0~3000	60	M2–M3
	400W	535kg/0.53.5N·m	0~2000	60	M2–M5
	750W	50120kg/0.512N·m	0~2500	80	M6–M12
Feeding mode	Screw feeder
Alarm function	Floating lock, sliding teeth, missing lock
Sensor	Omron
Driver	Leadership
Application screw	M0.9 ~ M6.0
Guide	Taiwan silver linear guide
Input power	AC110V~220V (Full voltage AC110-220V)
