DU-PAS
TOOLS FOR AVIATION INDUSTRY
Du-Pas provides advanced pneumatic and cordless tools designed for precision and reliability in the aviation industry.
Explore
Air Angle Nutrunners/ TDCS-D Angle Type
The torque accuracy conforms with a CMK value of ≥ 2 with ±10% tolerance in relation to Six Sigma,
with ±5% torque scatter according to ISO5393.

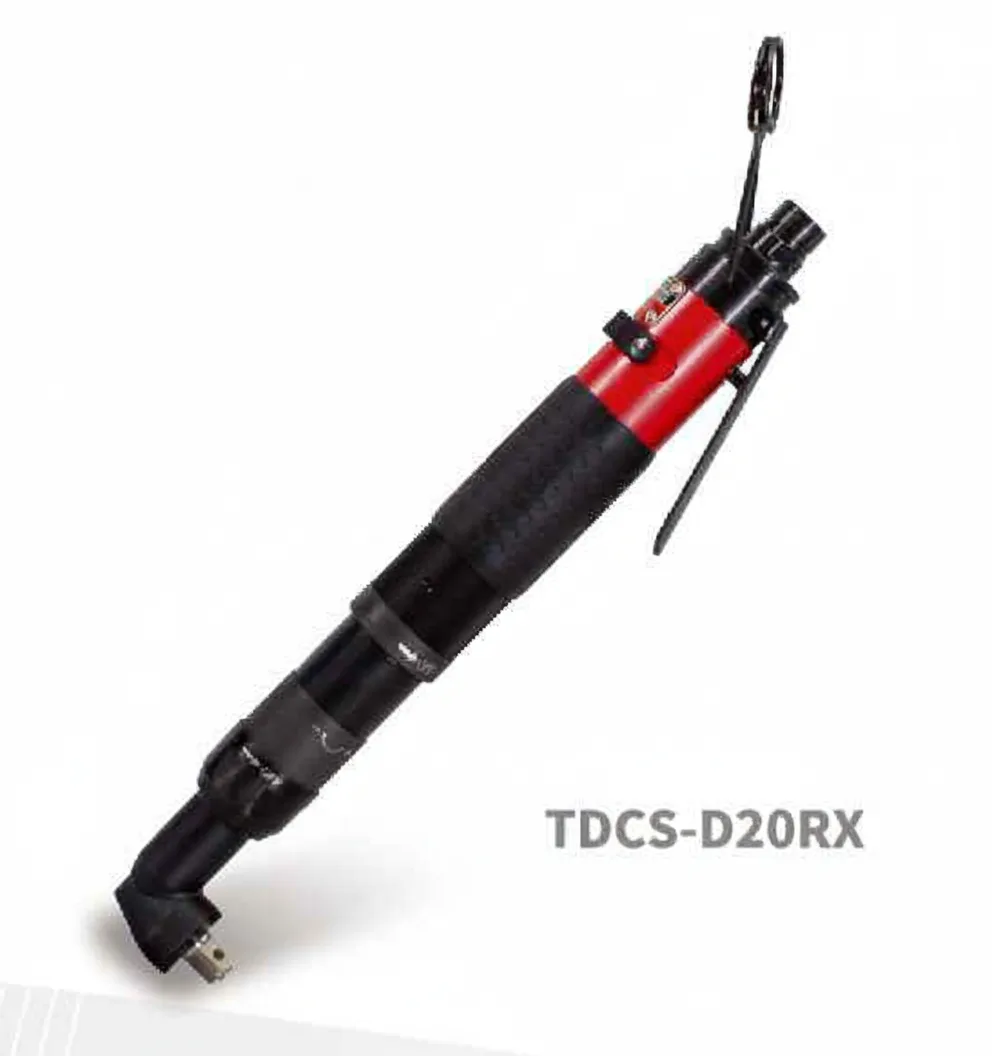

TDCS-D20RX

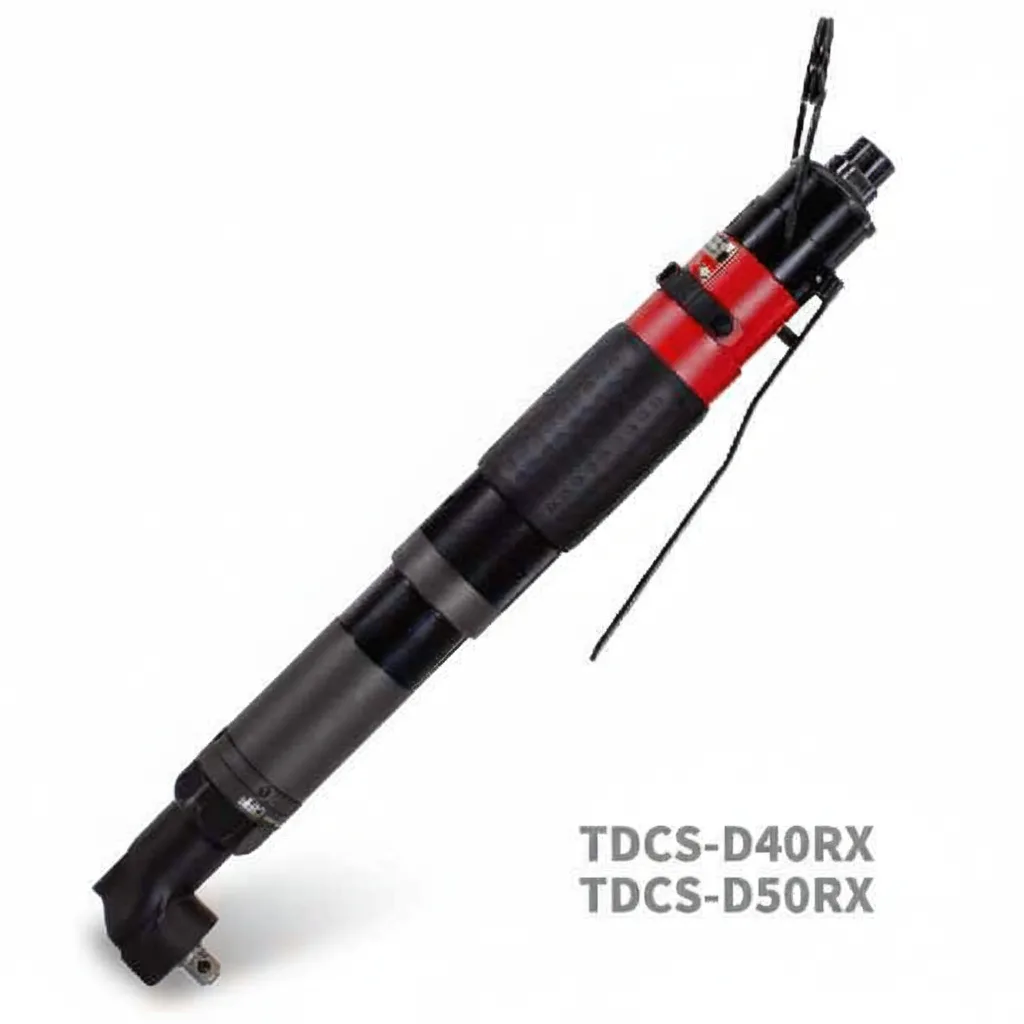

TDCS-D40RX / TDCS-D50RX

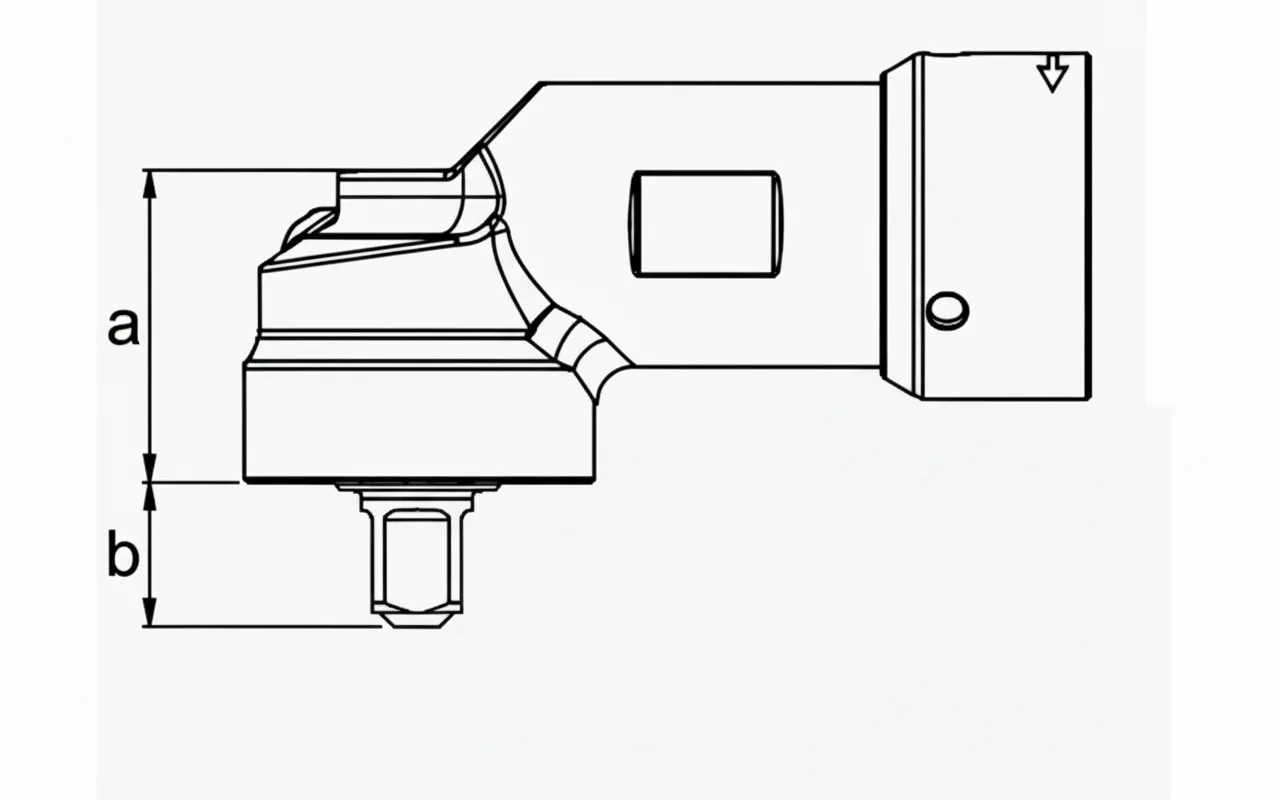

| Model No. | Drive Size | a | b | c |
|---|---|---|---|---|
| TDCS-D20RQ | 1/4" Hex | 29.8 | 17 | 13 |
| TDCS-D20RW | 1/4" Sq | 29.8 | 11.6 | 13 |
| TDCS-D20RX | 3/8" Sq | 29.8 | 13.8 | 13 |

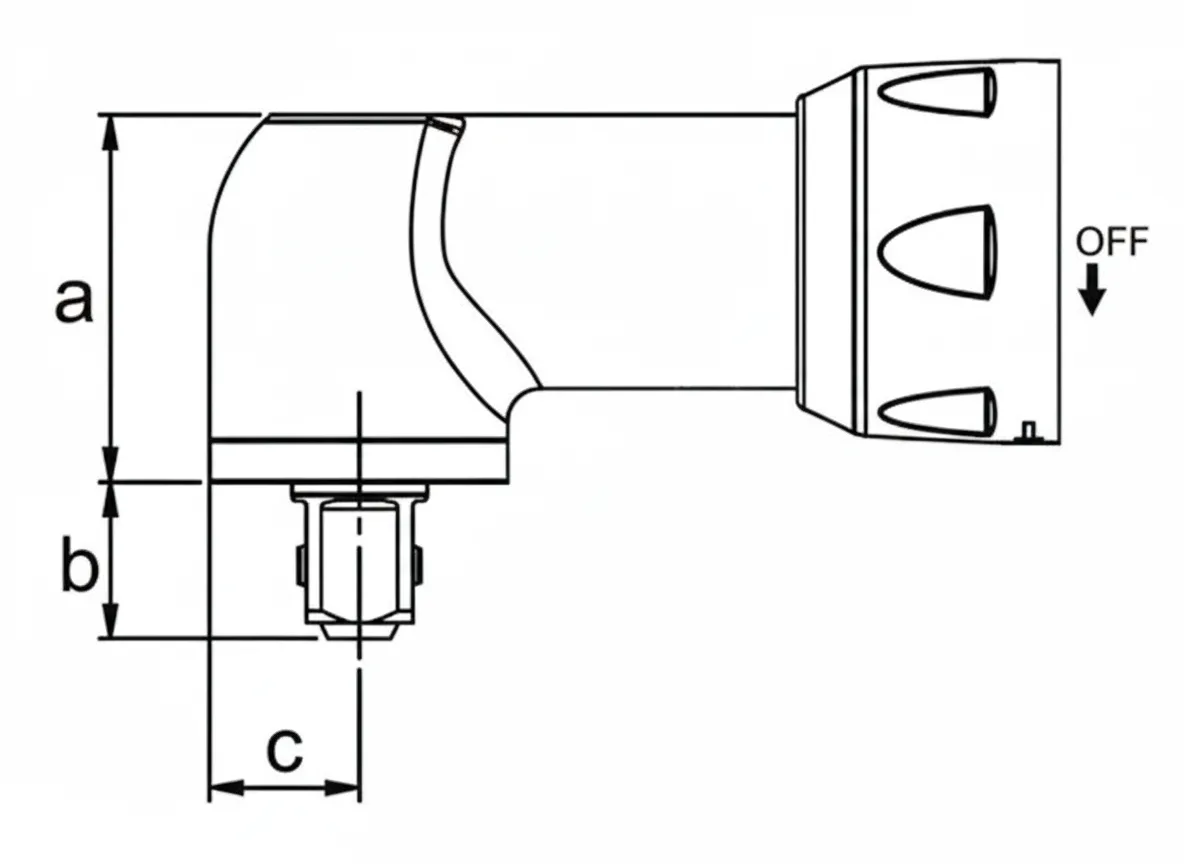

| Model No. | Drive Size | a | b | c |
|---|---|---|---|---|
| TDCS-D30RQ | 1/4" Hex | 32.3 | 17 | 13.5 |
| TDCS-D30RW | 1/4" Sq | 32.3 | 12.2 | 13.5 |
| TDCS-D30RX | 3/8" Sq | 33.3 | 13.8 | 13.5 |

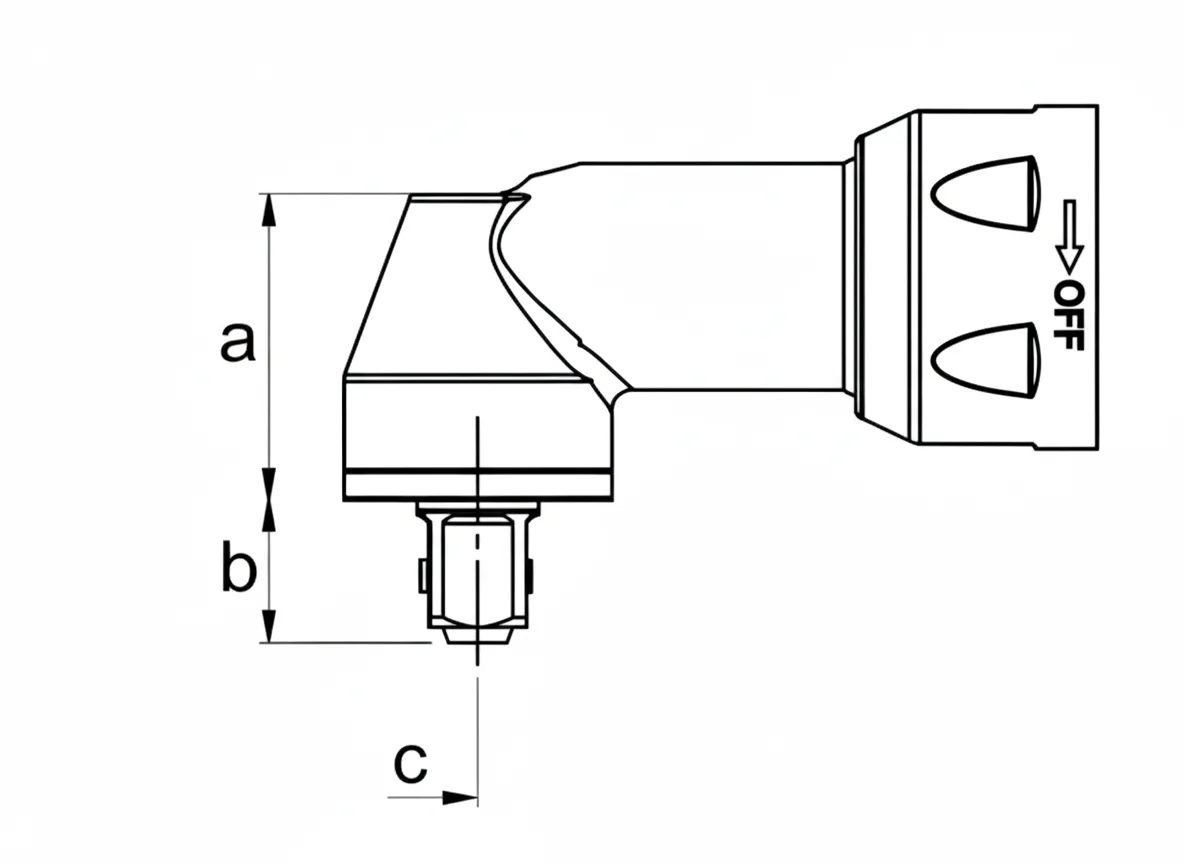

| Model No. | Drive Size | a | b | c |
|---|---|---|---|---|
| TDCS-D40RX | 3/8" Sq | 38 | 13.6 | 15.9 |
| TDCS-D50RX | 3/8" Sq | 38 | 13.6 | 15.9 |

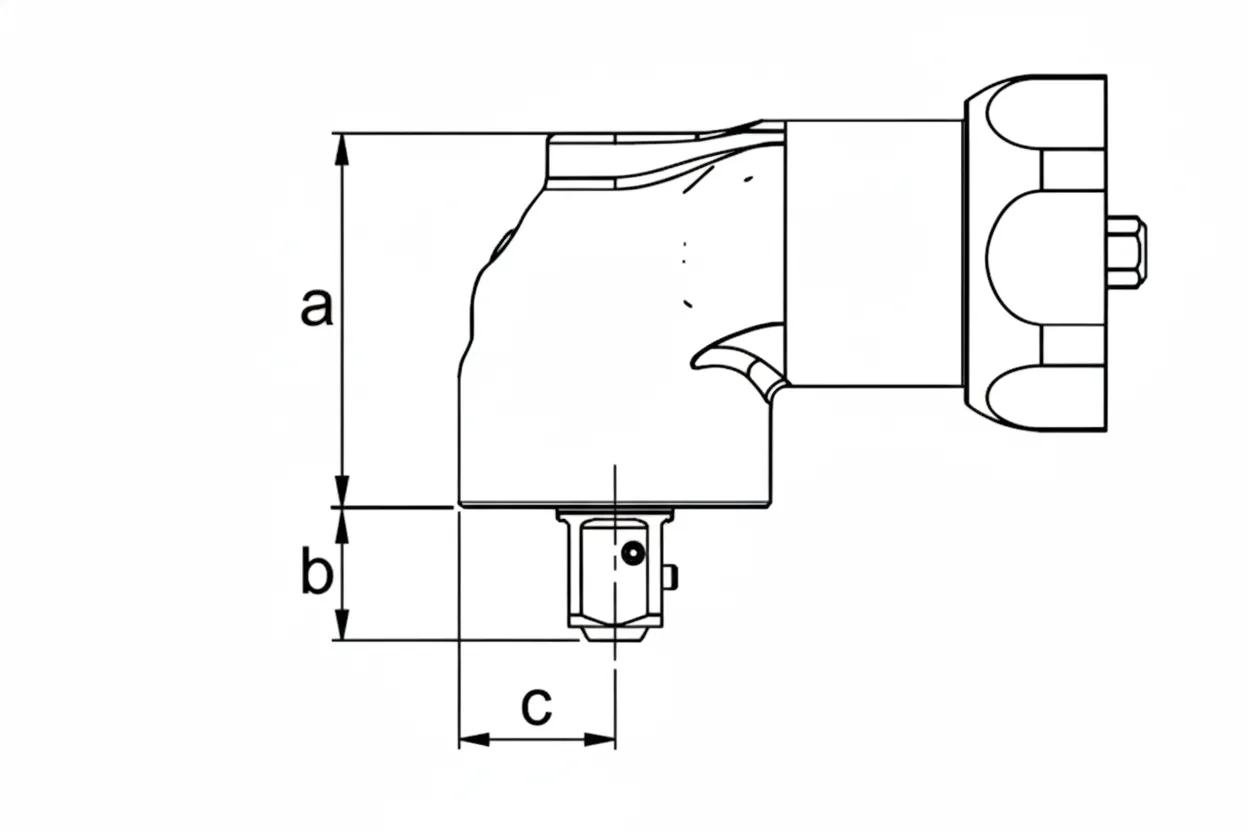

| Model No. | Drive Size | a | b | c |
|---|---|---|---|---|
| TDCS-D60RX | 3/8" Sq | 33.2 | 15.2 | 18.5 |
| TDCS-D70RX | 3/8" Sq | 33.2 | 15.2 | 18.5 |
| TDCS-D60RY | 1/2" Sq | 33.2 | 18.7 | 18.5 |
| TDCS-D70RY | 1/2" Sq | 33.2 | 18.7 | 18.5 |
| Model No. | Drive Size inch | Bolt Capacity mm | Torque Range | Free Speed rpm | Weight | Max. Diameter | Length | Air Inlet inch | Noise Level dB(A) | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| in-lb | Nm | lb | kg | inch | mm | inch | mm | ||||||
| TDCS-D20RQ-900 | 1/4" Hex | M4 - M5 | 22 - 62 | 2.5 - 7 | 900 | 2.42 | 1.1 | 1.53 | 39 | 11.9 | 303 | 1/4" | 78 |
| TDCS-D20RW-900 | 1/4" Sq | M4 - M5 | 22 - 62 | 2.5 - 7 | 900 | 2.42 | 1.1 | 1.53 | 39 | 11.9 | 303 | 1/4" | 78 |
| TDCS-D20RX-900 | 3/8" Sq | M4 - M5 | 22 - 62 | 2.5 - 7 | 900 | 2.42 | 1.1 | 1.53 | 39 | 11.9 | 303 | 1/4" | 78 |
| TDCS-D30RQ-480 | 1/4" Hex | M5 - M6 | 53 - 106 | 6 - 12 | 480 | 2.82 | 1.28 | 1.53 | 39 | 13.2 | 336 | 1/4" | 78 |
| TDCS-D30RW-480 | 1/4" Sq | M5 - M6 | 53 - 106 | 6 - 12 | 480 | 2.82 | 1.28 | 1.53 | 39 | 13.2 | 336 | 1/4" | 78 |
| TDCS-D30RX-480 | 3/8" Sq | M5 - M6 | 53 - 106 | 6 - 12 | 480 | 2.82 | 1.28 | 1.53 | 39 | 13.2 | 336 | 1/4" | 78 |
| TDCS-D30RQ-320 | 1/4" Hex | M5 - M6 | 53 - 133 | 6 - 15 | 320 | 2.82 | 1.28 | 1.53 | 39 | 13.2 | 336 | 1/4" | 78 |
| TDCS-D30RW-320 | 1/4" Sq | M5 - M6 | 53 - 133 | 6 - 15 | 320 | 2.82 | 1.28 | 1.53 | 39 | 13.2 | 336 | 1/4" | 78 |
| TDCS-D30RX-320 | 3/8" Sq | M5 - M6 | 53 - 133 | 6 - 15 | 320 | 2.82 | 1.28 | 1.53 | 39 | 13.2 | 336 | 1/4" | 78 |
| TDCS-D40RX-400 | 3/8" Sq | M6 - M8 | 89 - 160 | 10 - 18 | 400 | 3.85 | 1.75 | 1.77 | 45 | 14.4 | 366 | 1/4" | 83 |
| TDCS-D50RX-270 | 3/8" Sq | M8 | 124 - 212 | 14 - 24 | 270 | 3.85 | 1.75 | 1.77 | 45 | 14.4 | 366 | 1/4" | 83 |
| TDCS-D60RX-120 | 3/8" Sq | M8 - M10 | 212 - 400 | 24 - 45 | 120 | 4.47 | 2.03 | 1.77 | 45 | 16.1 | 408 | 1/4" | 83 |
| TDCS-D70RX-100 | 3/8" Sq | M10 - M12 | 310 - 530 | 35 - 60 | 100 | 4.47 | 2.03 | 1.77 | 45 | 16.1 | 408 | 1/4" | 83 |
| TDCS-D70RY-100 | 1/2" Sq | M10 - M12 | 310 - 530 | 35 - 60 | 100 | 4.47 | 2.03 | 1.77 | 45 | 16.1 | 408 | 1/4" | 83 |
