Pistol Type-SQ. Drive (2)

Pistol Type-SQ. Drive

Description

3/4

MODEL	SQ. Drive	Bolt Capacity	Torque Range	Free Speed (5kg/cm²)	Free Speed (6kg/cm²)	Weight (kg)	Length (mm)	Noise Level (dB(A))	Avg. Air Cons. (m³/min)	Avg. Air Cons. (ft³/min)	Hose Size (mm)	Shut off
TDIS-200	19 (3/4")	M18-M20	230-450 (170-332)	3000	3100	4.25	250.1	88	1.38	48.78	12.7	A
TDI-200	19 (3/4")	M18-M20	260-385 (191-283)	2800	3000	4.2	250.1	88	1.38	48.78	12.7	N
TDPS-180	19 (3/4")	M18-M20	140-260 (103.2-191.6)	3800	4000	3.1	231	86	1.16	41	11	A
TDIS-180	19 (3/4")	M16-M18	180-255 (132-188)	2500	2700	3.9	264	86	0.73	25.6	11	A
TDI-180	19 (3/4")	M16-M18	180-255 (132-188)	2500	2700	3.8	264	86	0.73	25.6	11	N
TDIS-150	19 (3/4")	M16	145-210 (106.8-154.6)	3500	3700	3.05	239	86	0.73	25.6	11	A
TDI-150	19 (3/4")	M16	145-210 (106.8-154.6)	3500	3700	3.05	239	86	0.73	25.6	11	N

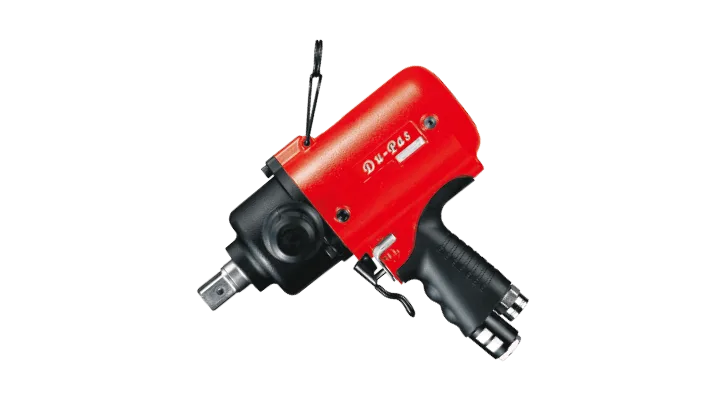

TDIS-200 Product

TDIS-200

TDI-200 Product

TDI-200

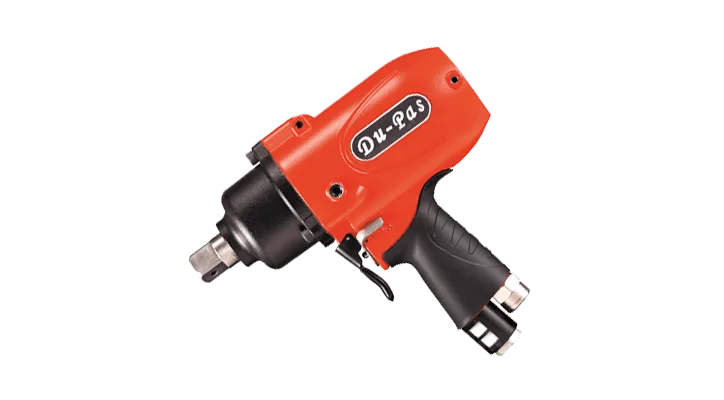

TDPS-180 Product

TDPS-180

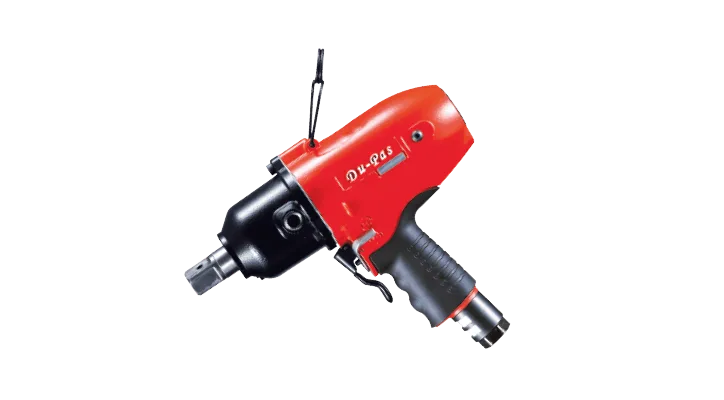

TDIS-180 Product

TDIS-180

TDI-180-1 Product

TDI-180

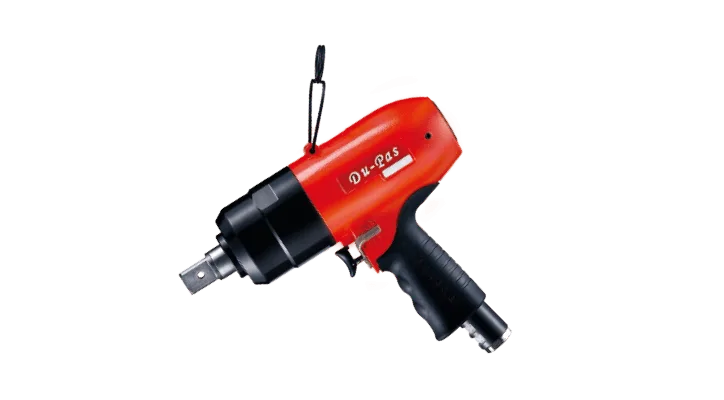

TDIS-150 Product

TDIS-150

TDI-150 Product

TDI-150

1/2

MODEL	SQ. Drive	Bolt Capacity	Torque Range	Free Speed (5kg/cm²)	Free Speed (6kg/cm²)	Weight (kg)	Length (mm)	Noise Level (dB(A))	Avg. Air Cons. (m³/min)	Avg. Air Cons. (ft³/min)	Hose Size (mm)	Shut off
TDIS-130	12.7 (1/2")	M14-M16	113-148 (83.2-109)	3300	3600	2.26	216	86	0.73	25.6	11	A
TDI-130	12.7 (1/2")	M14-M16	113-148 (83.2-109)	3300	3600	2.22	216	86	0.73	25.6	11	N
TDIS-100	12.7 (1/2")	M12-M14	75-120 (55.2-88.4)	5000	5300	1.87	209	84	0.53	19.4	8	A
TDI-100	12.7 (1/2")	M12-M14	75-120 (55.2-88.4)	5000	5300	1.85	209	84	0.53	19.4	8	N
TDIS-90	12.7 (1/2")	M12	57-90 (42-66.3)	5000	5400	1.55	200	83	0.53	18.7	8	A
TDI-90	12.7 (1/2")	M12	57-90 (42-66.3)	5000	5400	1.53	200	83	0.53	18.7	8	N
TDIS-80H	12.7 (1/2")	M10-M12	40-70 (29.5-51.5)	4800	5100	1.27	200	82	0.5	17.6	8	A
TDI-80H	12.7 (1/2")	M10-M12	40-70 (29.5-51.5)	4800	5100	1.25	200	82	0.5	17.6	8	N

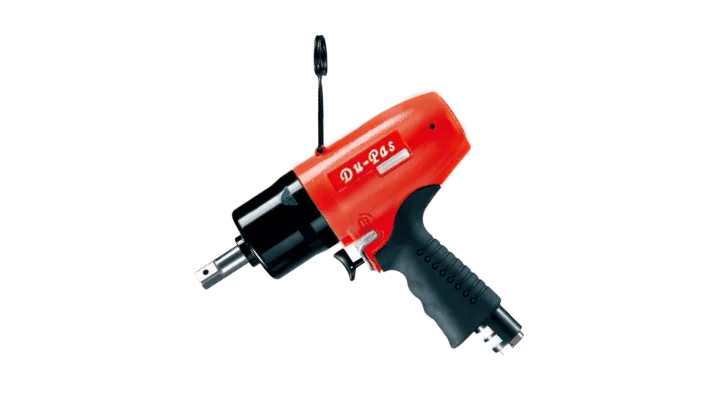

TDIS-130 Product

TDIS-130

TDI-130 Product

TDI-130

TDIS-100 Product

TDIS-100

TDI-100 Product

TDI-100

TDIS-90 Product

TDIS-90

TDI-90

TDIS-80H Product

TDIS-80H

TDI-80H Product

TDI-80H

3/8

MODEL	SQ. Drive	Bolt Capacity	Torque Range (N.m / ft-lb)	Free Speed (5kg/cm²)	Free Speed (6kg/cm²)	Weight (kg)	Length (mm)	Noise Level (dB(A))	Avg. Air Cons. (m³/min)	Avg. Air Cons. (ft³/min)	Hose Size (mm)	Shut off
TDIS-80	9.5 (3/8")	M10-M12	40-68 (29.5-50.1)	4800	5100	1.21	194	82	0.5	17.6	8	A
TDI-80	9.5 (3/8")	M10-M12	40-70 (29.5-51.5)	4800	5100	1.19	194	82	0.5	17.6	8	N
TDIS-70	9.5 (3/8")	M10-M12	34-57 (25-42)	6900	7200	1.35	194	82	0.45	15.9	8	A
TDI-70	9.5 (3/8")	M10-M12	34-57 (25-42)	6900	7200	1.33	194	82	0.45	15.9	8	N
TDIS-70X	9.5 (3/8")	M10-M12	32-55 (23.5-40.5)	5200	5400	1.08	189	82	0.45	15.9	8	A
TDI-70X	9.5 (3/8")	M10-M12	32-55 (23.5-40.5)	5200	5400	1.05	189	82	0.45	15.9	8	N
TDIS-65	9.5 (3/8")	M10	27-45 (19.8-33.1)	4500	4800	1.08	189	82	0.43	15.2	8	A
TDI-65	9.5 (3/8")	M10	27-45 (19.8-33.1)	4500	4800	1.05	189	82	0.43	15.2	8	N
TDIS-60	9.5 (3/8")	M8-M10	20-35 (14.7-25.8)	5900	6200	1	178	82	0.4	14.1	8	A
TDI-60	9.5 (3/8")	M8-M10	20-35 (14.7-25.8)	5900	6200	0.97	178	82	0.4	14.1	8	N
TDI-60X	9.5 (3/8")	M8-M10	20-35 (14.7-25.8)	5900	6200	0.8	147	82	0.4	14.1	8	N
TDIS-50	9.5 (3/8")	M8	14-28 (10.4-20.7)	6800	7200	0.92	167	80	0.35	12.3	6.5	A
TDI-50	9.5 (3/8")	M8	14-28 (10.4-20.7)	6800	7200	0.9	167	80	0.35	12.3	6.5	N
TDI-50X	9.5 (3/8")	M8	14-28 (10.4-20.7)	6800	7200	0.74	136	80	0.35	12.3	6.5	N
TDIS-40	9.5 (3/8")	M6-M8	10-19 (7.4-14)	4300	4600	0.92	167	78	0.25	8.8	6.5	A
TDI-40	9.5 (3/8")	M6-M8	10-19 (7.4-14)	4300	4600	0.9	167	78	0.25	8.8	6.5	N
TDI-40X	9.5 (3/8")	M6-M8	10-19 (7.4-14)	4300	4600	0.74	136	78	0.25	8.8	6.5	N
TDIS-30	9.5 (3/8")	M6	6.5-13 (4.8-9.6)	4300	4600	0.89	167	78	0.25	8.8	6.5	A
TDI-30X	9.5 (3/8")	M6	6.5-13 (4.8-9.6)	4300	4600	0.72	136	78	0.25	8.8	6.5	N
TDI-30	9.5 (3/8")	M6	6.5-13 (4.8-9.6)	4300	4600	0.87	167	78	0.25	8.8	6.5	N

TDIS-80 Product

TDIS-80

TDI-80

TDIS-70 Product

TDIS-70

TDI-70

TDIS-70X Product

TDIS-70X

TDI-70X Product

TDI-70X

TDIS-65 Product

TDIS-65

TDI-65

TDIS-60 Product

TDIS-60

TDI-60

TDI-60X Product

TDI-60X

TDIS-50 Product

TDIS-50

TDI-50

TDI-50X Product

TDI-50X

TDIS-40 Product

TDIS-40

TDI-40

TDI-40X Product

TDI-40X

TDIS-30 Product

TDIS-30

TDI-30X Product

TDI-30X

TDI-30
