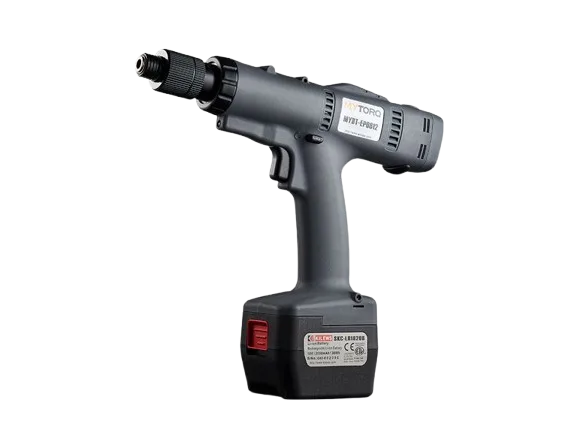

MYBT-EP Series
MYBT-NR0205F/2507
Auto Shut Off Nutrunner
Features
- LED illumination to light up dark areas
- Status LED to indicate users tightening results
- 10x lifespan long-lasting contactless micro switch trigger
- Built-in error-proof function to avoid costly human errors
- The durable auto shut off clutch guarantee 2 million tightening
- Smart in-process control to lock the screwdriver when an error occurred
- The sophisticated auto shut off clutch provides outstanding ±3% torque accuracy
- Adopted maintenance-free brushless motor for clean, quiet, and accurate operation

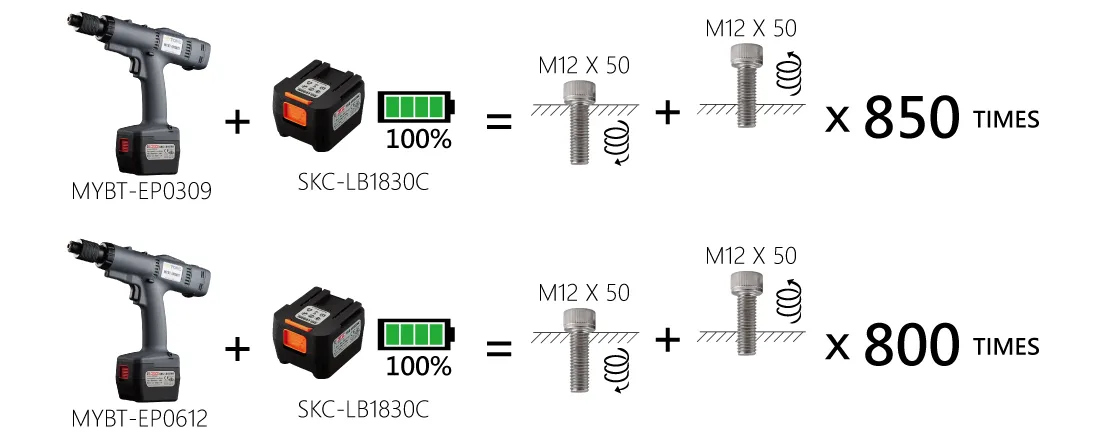

- A fully charged 18V lithium-ion battery can tighten up to 1,500 screws
- Auto cut off when low battery to avoid insufficient torque applied to screws
- 40 minutes quick charge
MYBT-EP Product Specifications
| Model | Input Voltage | Torque (N·m) Hard Joint | Torque (N·m) Soft Joint | Repeatable Torque Accuracy (%) | Free Speed (r.p.m) ±10% | Weight (Kg) | Size LxH (mm) | Applicable Battery | Applicable Charge Station | Applicable Torque Meter | Bit Type |
|---|---|---|---|---|---|---|---|---|---|---|---|
| MYBT-EP0612 | 18V | 6 ~ 12 | 6 ~ 9.6 | ±3% | 260 ~ 880 | 1.2 | 260 x 220 | SKC-LB1830C | MYCS-ID80-D | KTM-150 | B, B9.5, W3/8″ |
| MYBT-EP0309 | 18V | 3 ~ 9 | 3 ~ 7.2 | ±3% | 300 ~ 1000 | 1.2 | 260 x 220 | SKC-LB1830C | MYCS-ID80-D | KTM-150 | B, B9.5, W3/8″ |
| MYBT-EP0205F | 18V | 2 ~ 5 | 2 ~ 4 | ±3% | 660 ~ 2200 | 1.2 | 260 x 220 | SKC-LB1830C | MYCS-ID80-D | KTM-150 | B, B9.5, W3/8″ |
