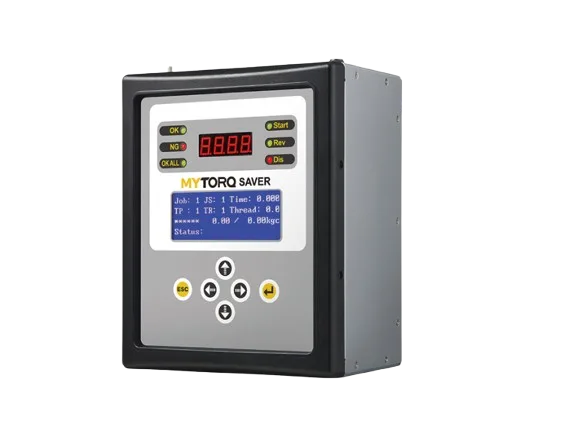

MY-SAVER Controller

Controller

MY-Sirius Features

Features

RS232/ Ethernet interfaces for data collection
SD card available for temporary data storage (Support 32GB and below)
Up to 5 rundown steps for process control (Torque / Time / Thread / RPM / Forward / Reverse)
Save up to 250 steps, 50 sequences & 50 jobs
Can quickly switch between sequences & jobs, suitable for low volume high mix order
Preventive maintenance reminder to avoid production down time
Cost effective torque control screw tightening solution for Industry 4.0
Free setting program & data acquisition software
User friendly human machine interface

I/O Signal Table

I/O Signal Input

MY-SAVER Controller Comparison

Model	MY-SAVER	MY-SAVER mega
Input Voltage	AC 115/230V 50-60Hz	AC 115/230V 50-60Hz
Output Voltage	DC 40V	DC 40V
Count	1~99	1~99
Count method	Count-up / Count-down	Count-up / Count-down
Detection torque value	According to the screwdriver specifications	According to the screwdriver specifications
Detection screw thread number	0.0~999.9	0.0~999.9
External connection input	Start / Reverse / Disable / Confirm / Cleared / Gate / Sequence	Start / Reverse / Disable / Confirm / Cleared / Gate / Sequence
External connection output	OK/NG/OK ALL/Start/Reverse	OK/NG/OK ALL/Start/Reverse
Serial interface	RS-232 , Micro SD , LAN	RS-232 , Micro SD , LAN
Assembly management	MY-DAS / MY Assembly Office	MY-DAS / MY Assembly Office
External dimensions	241 × 185 × 127 (mm)	241 × 185 × 127 (mm)
Weight(Kg)	3.4 Kg	3.4 Kg
Applicable Models	MY-SAVER mini Series MY-SAVER 3 / 5 / 7 MY-SAVER 3 / 5 / 7 RA	MY-SAVER 12 / 18 / 25 MY-SAVER 12 / 18 / 25 RA MY-SAVER PISTOL 12
