MYPC40-1500 Power Controller
MYPC40-1500
Power Controller
MODELMYPC40-1500
Input VoltageAC 110 V / 50 Hz, 230 V / 60 Hz
Output VoltageDC 40 V / 32 V / 24 V, 9 A
Power Consumption360 W
Count1 ~ 99
Count MethodCount-up / Count-down
Work with SensorON / OFF
GATE SensorON (2 Sensors) / OFF (1 Sensor)
Slow-start Time Adjustable0 ~ 9.9 seconds
Slow-start Speed AdjustableL0: 100%, 30% ~ 90% (L1 ~ L9 Rated Speed)
Running Time Limit (LO)0.00 ~ 9.99 seconds
Running Time Limit (HI)0.0 ~ 9.9 seconds
Reminder ModeON / OF / FF / EF (with LED and buzzer)
Auto ZEROON / OFF
External InputsForward / Reverse / Disable / Confirm / Sensor / Clear
External OutputsOK / NG / OK ALL
Screwdriver ControlHI / LO : Slow-Start
External Dimensions247 × 130 × 100 mm
Weight2.4 kg
Applicable ModelsAll High Torque Models

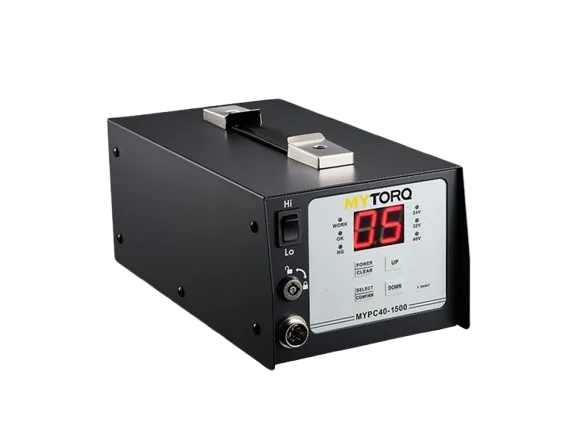

MYPC40-1500 Power Controller
High-power industrial controller built for high torque applications. Provides stable output, precise control, and reliable performance for heavy-duty assembly systems with advanced error-proof tightening functions.
Features
- Easy to set up
- Save up to 5 programs
- Use up to 5 programs in 1 sequence
- Timer error proof system to avoid costly tightening error
- Various I/O ports to connect to your PLC and automation equipment
- Buzzer alert and NG lock functions to avoid operators passing defective workpiece to next station
