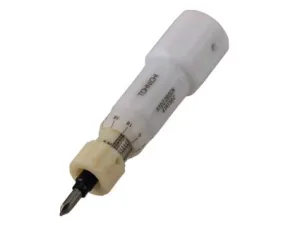

RTDZ
Designed for use in environments where there are potential electric shock hazards.
Features
- Withstands voltage: Max AC1000V.
- Prevents electric shock accidents.
- When set torque value is achieved, rotary slip prevents over-torque.
- Ideal for electric car assembly, connection of battery terminal, and wiring work.
- Torque setting is easy to adjust by knob and scale.
- Counterclockwise tightening model available upon request. Please contact us.
| Specification | RTDZ260CN | RTDZ500CN |
|---|---|---|
| Accuracy | ±3% | ±3% |
| S.I. Model | RTDZ260CN | RTDZ500CN |
| Torque Range [cN・m] (Min - Max) | 60 - 260 | 100 - 500 |
| Grad. | 2 | 5 |
| Metric Model | 26RTDZ | 50RTDZ |
| Torque Range [kgf・cm] (Min - Max) | 6 - 26 | 10 - 50 |
| Grad. | 0.2 | 0.5 |
| Applicable Screw (Small Screw) | M4 (M4.5) | M5, M6 |
| Applicable Screw (Tapping Screw) | M4 (M4.5) | - |
| Dimension [mm] (Overall Length L') | 150 | 183 |
| Grip (L1) | 110 | 126 |
| W1 | 32 | 33.2 |
| W2 | 39 | 47 |
| Shape | Hexagon | Octagon |
| D1 | 42 | 50 |
| D3 | 12 | 12 |
| D4 | 30 | 35 |
| D5 | 30.5 | 33 |
| Weight [kg] | 0.22 | 0.38 |
