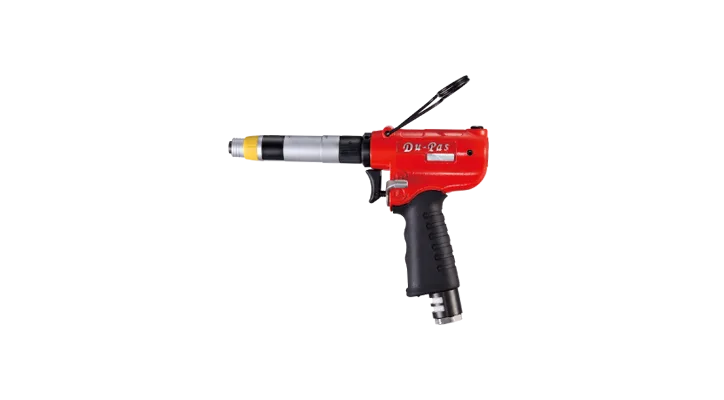

TDCS-D Series

Pistol Type

Product Showcase

MODEL	Drive Size	Screw Size	Torque Range	Free Speed	Weight	Air Inlet	Noise Level	Air Consumption
TDCS-D08-1500	1/4" Hex.	M2	0.4~0.7 N.m (3.5~6.2 in-lb)	1500 rpm	0.70 kg	1/4"	72 dB(A)	3.5 l/s (7 cfm)
TDCS-D08-1100	1/4" Hex.	M2	0.4~1 N.m (3.5~8.8 in-lb)	1100 rpm	0.70 kg	1/4"	72 dB(A)	3.5 l/s (7 cfm)
TDCS-D10-1600	1/4" Hex.	M2-M3	0.7~1.3 N.m (6.2~11.5 in-lb)	1600 rpm	0.90 kg	1/4"	75 dB(A)	5.5 l/s (12 cfm)
TDCS-D10-900	1/4" Hex.	M3	0.7~2 N.m (6.2~17.7 in-lb)	900 rpm	0.90 kg	1/4"	75 dB(A)	5.5 l/s (12 cfm)

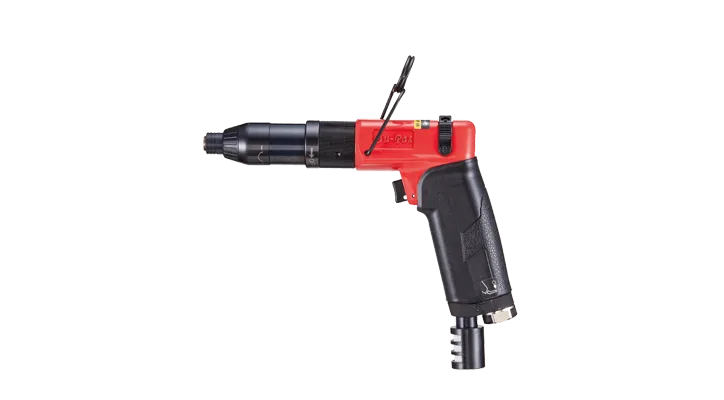

TDCS-D20-3500	1/4" Hex.	M3	0.7~2.3 N.m (6.2~20 in-lb)	3500 rpm	1.07 kg	1/4"	75 dB(A)	13 l/s (27 cfm)
TDCS-D20-3000	1/4" Hex.	M3-M4	0.8~3 N.m (7.1~27 in-lb)	3000 rpm	1.07 kg	1/4"	75 dB(A)	13 l/s (27 cfm)
TDCS-D20-2000	1/4" Hex.	M3-M4	0.8~4.5 N.m (7.1~40 in-lb)	2000 rpm	1.07 kg	1/4"	75 dB(A)	13 l/s (27 cfm)
TDCS-D20-1100	1/4" Hex.	M3-M5	1.2~6 N.m (10.6~53 in-lb)	1100 rpm	1.07 kg	1/4"	75 dB(A)	13 l/s (27 cfm)
TDCS-D30-700	1/4" Hex.	M4-M5	4~9 N.m (35~80 in-lb)	700 rpm	1.22 kg	1/4"	75 dB(A)	13 l/s (27 cfm)
TDCS-D30-500	1/4" Hex.	M4-M6	4~11 N.m (35~97 in-lb)	500 rpm	1.22 kg	1/4"	75 dB(A)	13 l/s (27 cfm)

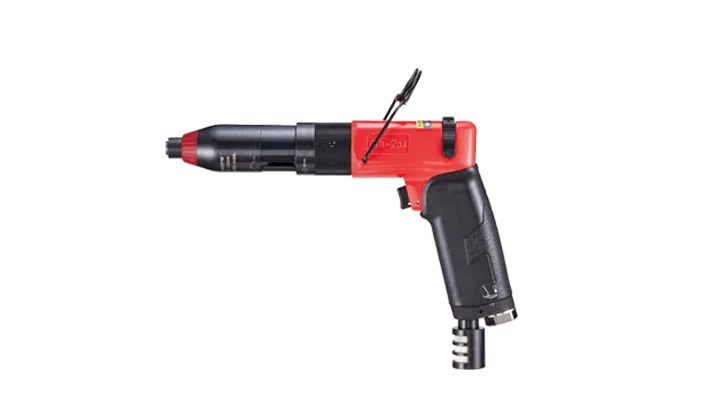

TDCS-D40-550	1/4" Hex.	M5-M6	7~14 N.m (62~124 in-lb)	550 rpm	1.50 kg	1/4"	80 dB(A)	17 l/s (35 cfm)
TDCS-D50-380	1/4" Hex.	M6-M8	9~18 N.m (80~159 in-lb)	380 rpm	1.50 kg	1/4"	80 dB(A)	17 l/s (35 cfm)

TDCS-D08-1500

TDCS-D08-1100

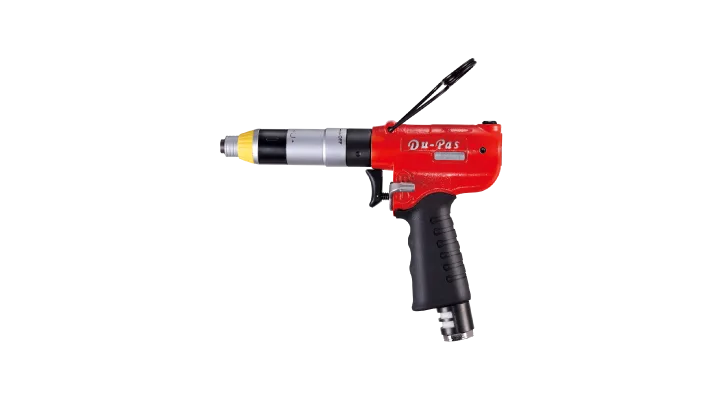

TDCS-D10-1600

TDCS-D10-900

TDCS-D20-3500

TDCS-D20-3000

TDCS-D20-2000

TDCS-D20-1100

TDCS-D30-700

TDCS-D30-500

TDCS-D40-550

TDCS-D50-380

Lever Start

Product Showcase

MODEL	Drive Size	Screw Size	Torque Range	Free Speed	Weight	Air Inlet	Noise Level	Air Consumption
TDCS-D08SL-1500	1/4" Hex.	M2	0.4~0.7 N.m (3.5~6.2 in-lb)	1500 rpm	0.41 kg	1/8"	73 dB(A)	3.5 l/s (7 cfm)
TDCS-D08SL-1100	1/4" Hex.	M2	0.4~1 N.m (3.5~8.8 in-lb)	1100 rpm	0.41 kg	1/8"	73 dB(A)	3.5 l/s (7 cfm)
TDCS-D10SL-1600	1/4" Hex.	M2-M3	0.7~1.3 N.m (6.2~11.5 in-lb)	1600 rpm	0.63 kg	1/8"	75 dB(A)	5.5 l/s (12 cfm)
TDCS-D10SL-900	1/4" Hex.	M3	0.7~2 N.m (6.2~17.7 in-lb)	900 rpm	0.63 kg	1/8"	75 dB(A)	5.5 l/s (12 cfm)

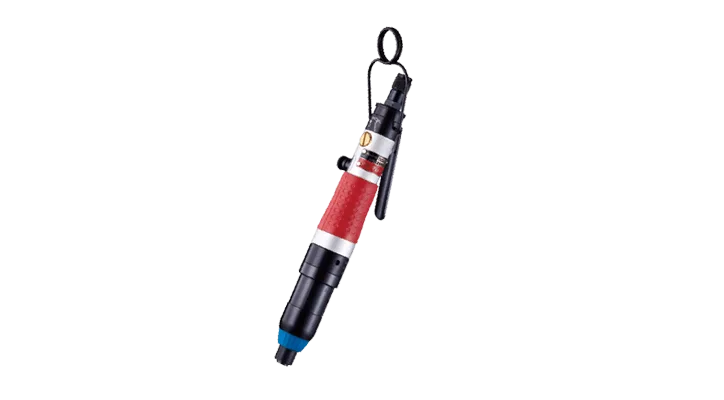

TDCS-D15SL-2000	1/4" Hex.	M2-M3	0.5~2.5 N.m (4.4~22 in-lb)	2000 rpm	0.71 kg	1/8"	81 dB(A)	4.5 l/s (10 cfm)
TDCS-D15SL-1300	1/4" Hex.	M3-M4	0.8~3.5 N.m (7.1~31 in-lb)	1300 rpm	0.71 kg	1/8"	81 dB(A)	4.5 l/s (10 cfm)
TDCS-D15SL-1000	1/4" Hex.	M3-M4	0.8~4.5 N.m (7.1~40 in-lb)	1000 rpm	0.71 kg	1/8"	81 dB(A)	4.5 l/s (10 cfm)
TDCS-D15SL-750	1/4" Hex.	M3-M5	0.8~5 N.m (7.1~44 in-lb)	750 rpm	0.71 kg	1/8"	81 dB(A)	4.5 l/s (10 cfm)
TDCS-D20SL-3500	1/4" Hex.	M3	0.7~2.3 N.m (6.2~20 in-lb)	3500 rpm	0.87 kg	1/4"	78 dB(A)	7 l/s (15 cfm)
TDCS-D20SL-3000	1/4" Hex.	M3-M4	0.8~3 N.m (7.1~27 in-lb)	3000 rpm	0.87 kg	1/4"	78 dB(A)	7 l/s (15 cfm)
TDCS-D20SL-2000	1/4" Hex.	M3-M4	0.8~4.5 N.m (7.1~40 in-lb)	2000 rpm	0.87 kg	1/4"	78 dB(A)	7 l/s (15 cfm)
TDCS-D20SL-1100	1/4" Hex.	M3-M5	1.2~6 N.m (10.6~53 in-lb)	1100 rpm	0.87 kg	1/4"	78 dB(A)	7 l/s (15 cfm)
TDCS-D30SL-700	1/4" Hex.	M4-M5	4~9 N.m (35~80 in-lb)	700 rpm	1.01 kg	1/4"	78 dB(A)	7 l/s (15 cfm)
TDCS-D30SL-500	1/4" Hex.	M4-M6	4~11 N.m (35~97 in-lb)	500 rpm	1.01 kg	1/4"	78 dB(A)	7 l/s (15 cfm)

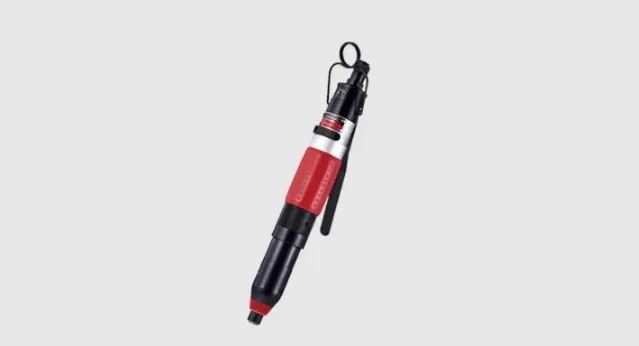

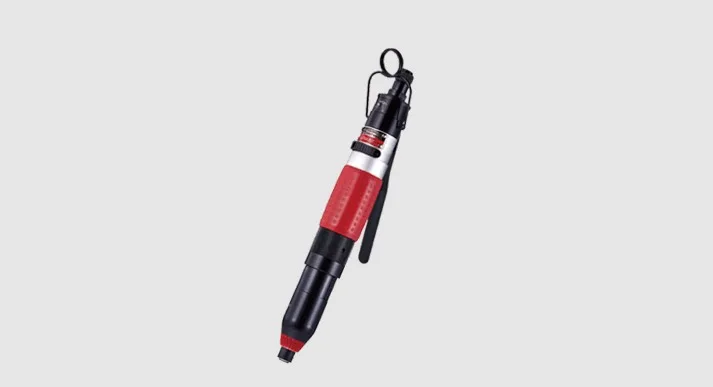

TDCS-D40SL-550	1/4" Hex.	M5-M6	7~14 N.m (62~124 in-lb)	550 rpm	1.34 kg	1/4"	83 dB(A)	8 l/s (17 cfm)

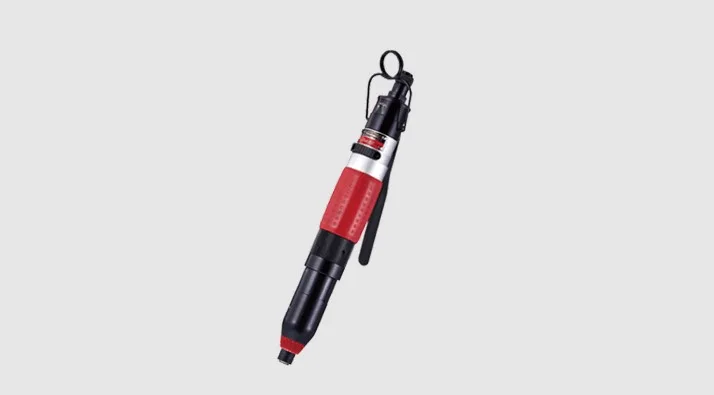

TDCS-D50SL-380	1/4" Hex.	M6-M8	9~18 N.m (80~159 in-lb)	380 rpm	1.34 kg	1/4"	83 dB(A)	8 l/s (17 cfm)

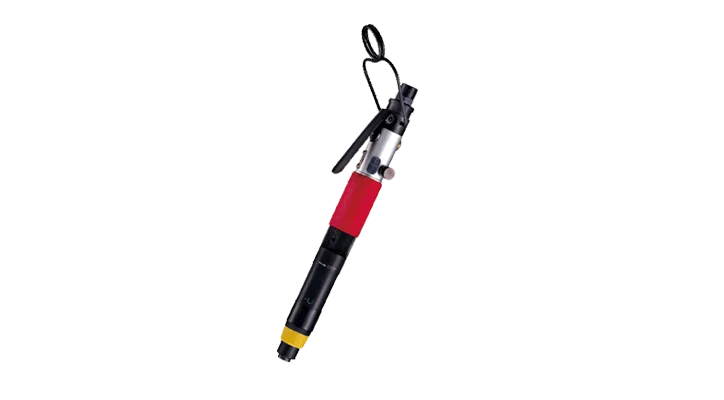

TDCS-D08SL-1500

TDCS-D08SL-1100

TDCS-D10SL-1600

TDCS-D10SL-900

TDCS-D15SL-2000

TDCS-D15SL-1300

TDCS-D15SL-1000

TDCS-D15SL-750

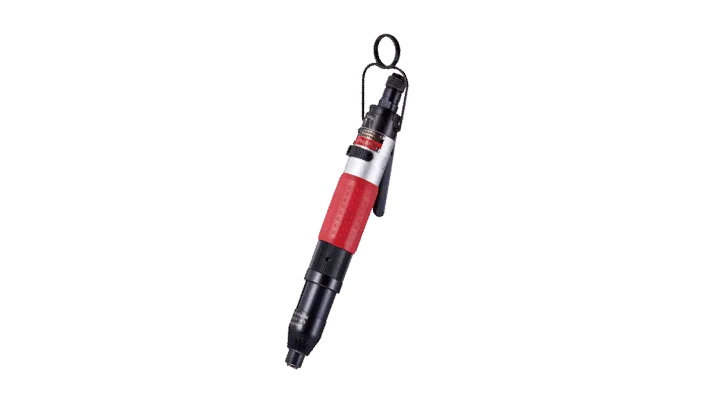

TDCS-D20SL-3500

TDCS-D20SL-3000

TDCS-D20SL-2000

TDCS-D20SL-1100

TDCS-D30SL-700

TDCS-D30SL-500

TDCS-D30SL-500

Push Start

Product Showcase

MODEL	Drive Size	Screw Size	Torque Range	Free Speed	Weight	Air Inlet	Noise Level	Air Consumption
TDCS-D08S-1500	1/4" Hex.	M2	0.4~0.7 N.m (3.5~6.2 in-lb)	1500 rpm	0.35 kg	1/8"	73 dB(A)	3.5 l/s (7 cfm)
TDCS-D08S-1100	1/4" Hex.	M2	0.4~1 N.m (3.5~8.8 in-lb)	1100 rpm	0.35 kg	1/8"	73 dB(A)	3.5 l/s (7 cfm)
TDCS-D10S-1600	1/4" Hex.	M2-M3	0.7~1.3 N.m (6.2~11.5 in-lb)	1600 rpm	0.60 kg	1/8"	75 dB(A)	5.5 l/s (12 cfm)
TDCS-D10S-900	1/4" Hex.	M3	0.7~2 N.m (6.2~17.7 in-lb)	900 rpm	0.60 kg	1/8"	75 dB(A)	5.5 l/s (12 cfm)
TDCS-D15S-2000	1/4" Hex.	M2-M3	0.5~2.5 N.m (4.4~22 in-lb)	2000 rpm	0.66 kg	1/8"	79 dB(A)	4.5 l/s (10 cfm)
TDCS-D15S-1300	1/4" Hex.	M3-M4	0.8~3.5 N.m (7.1~31 in-lb)	1300 rpm	0.66 kg	1/8"	79 dB(A)	4.5 l/s (10 cfm)
TDCS-D15S-1000	1/4" Hex.	M3-M4	0.8~4.5 N.m (7.1~40 in-lb)	1000 rpm	0.66 kg	1/8"	79 dB(A)	4.5 l/s (10 cfm)
TDCS-D15S-750	1/4" Hex.	M3-M5	0.8~5 N.m (7.1~44 in-lb)	750 rpm	0.66 kg	1/8"	79 dB(A)	4.5 l/s (10 cfm)
TDCS-D20S-3500	1/4" Hex.	M3	0.7~2.3 N.m (6.2~20 in-lb)	3500 rpm	0.82 kg	1/4"	78 dB(A)	7.5 l/s (16 cfm)
TDCS-D20S-3000	1/4" Hex.	M3-M4	0.8~3 N.m (7.1~27 in-lb)	3000 rpm	0.82 kg	1/4"	78 dB(A)	7.5 l/s (16 cfm)
TDCS-D20S-2000	1/4" Hex.	M3-M4	0.8~4.5 N.m (7.1~40 in-lb)	2000 rpm	0.82 kg	1/4"	78 dB(A)	7.5 l/s (16 cfm)
TDCS-D20S-1100	1/4" Hex.	M3-M5	1.2~6 N.m (10.6~53 in-lb)	1100 rpm	0.82 kg	1/4"	78 dB(A)	7.5 l/s (16 cfm)
TDCS-D30S-700	1/4" Hex.	M4-M5	4~9 N.m (35~80 in-lb)	700 rpm	0.96 kg	1/4"	78 dB(A)	7.5 l/s (16 cfm)
TDCS-D30S-500	1/4" Hex.	M4-M6	4~11 N.m (35~97 in-lb)	500 rpm	0.96 kg	1/4"	78 dB(A)	7.5 l/s (16 cfm)

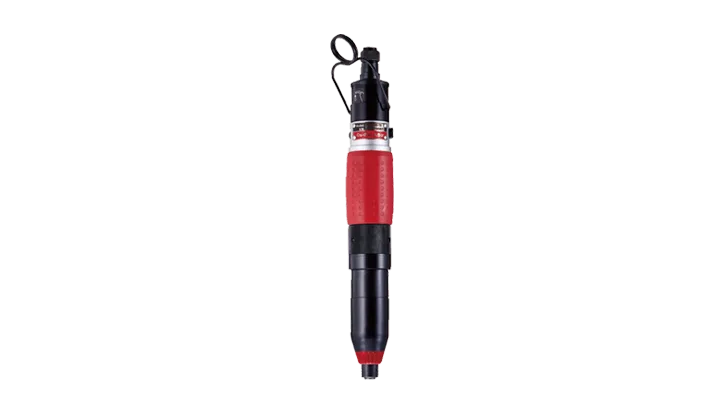

TDCS-D40S-550	1/4" Hex.	M5-M6	7~14 N.m (62~124 in-lb)	550 rpm	1.26 kg	1/4"	82 dB(A)	9.5 l/s (20 cfm)
TDCS-D50S-380	1/4" Hex.	M6-M8	9~18 N.m (80~159 in-lb)	380 rpm	1.26 kg	1/4"	82 dB(A)	9.5 l/s (20 cfm)

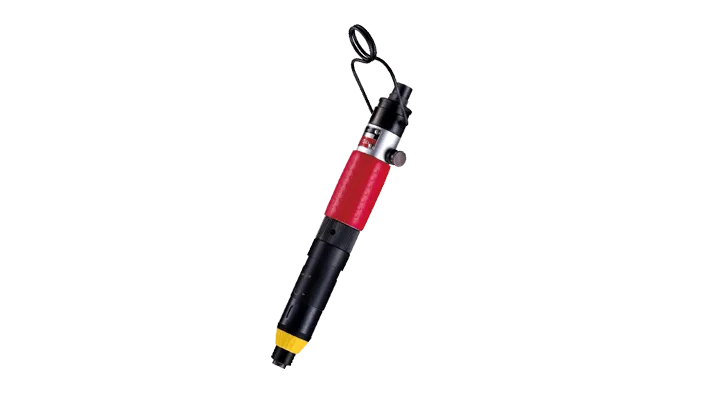

TDCS-D08S-1500

TDCS-D08S-1100

TDCS-D10S-1600

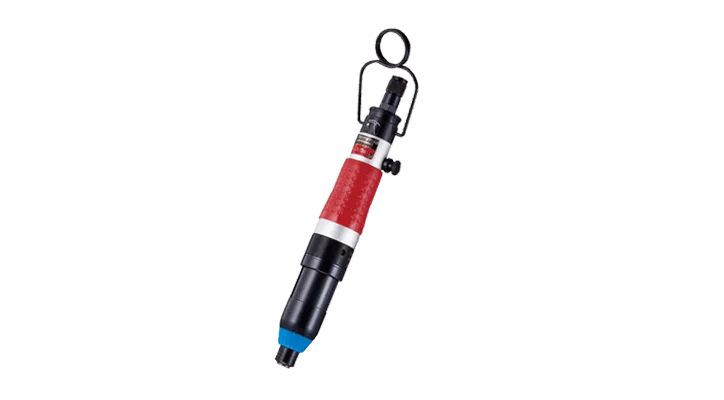

TDCS-D10S-900

TDCS-D15S-2000

TDCS-D15S-1300

TDCS-D15S-1000

TDCS-D15S-750

TDCS-D20S-3500

TDCS-D20S-3000

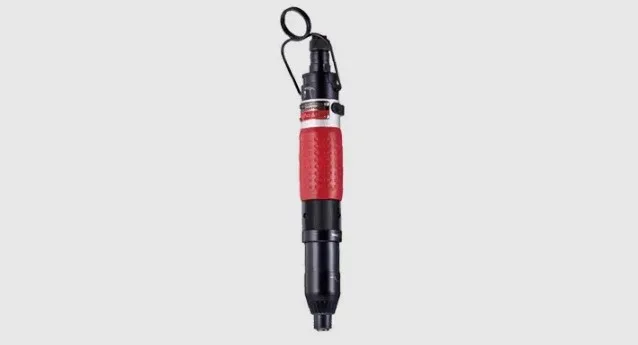

TDCS-D20S-2000

TDCS-D20S-1100

TDCS-D30S-700

TDCS-D30S-500

TDCS-D40S-550

TDCS-D50S-380

angle Type

Product Showcase

MODEL	Drive Size	Screw Size	Torque Range	Free Speed	Weight	Air Inlet	Noise Level	Air Consumption

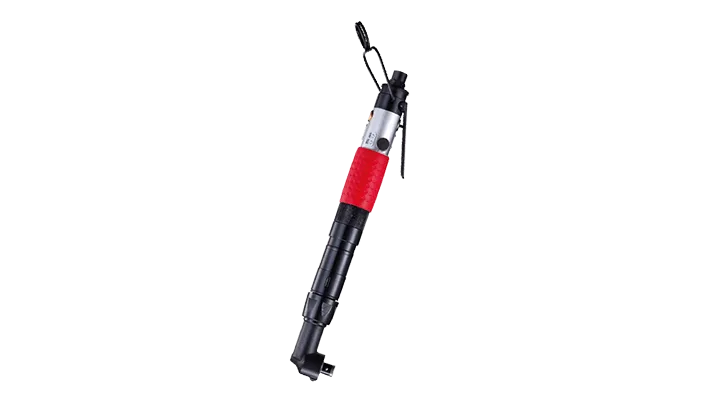

TDCS-D08RS-1500-C	1/4" Hex.	M2	0.4~0.7 N.m (3.5~6.2 in-lb)	1500 rpm	0.56 kg	1/8"	73 dB(A)	3.5 l/s (7 cfm)
TDCS-D08RS-1100-C	1/4" Hex.	M2	0.4~1 N.m (3.5~8.8 in-lb)	1100 rpm	0.56 kg	1/8"	73 dB(A)	3.5 l/s (7 cfm)
TDCS-D10RS-1600-C	1/4" Hex.	M2-M3	0.7~1.3 N.m (6.2~11.5 in-lb)	1600 rpm	0.80 kg	1/8"	75 dB(A)	5.5 l/s (12 cfm)
TDCS-D10RS-900-C	1/4" Hex.	M3	0.7~2 N.m (6.2~17.7 in-lb)	900 rpm	0.80 kg	1/8"	75 dB(A)	5.5 l/s (12 cfm)
TDCS-D15RQ-1300-C	1/4" Hex.	M3-M4	1~3 N.m (8.8~31 in-lb)	1300 rpm	0.98 kg	1/8"	81 dB(A)	4.5 l/s (10 cfm)

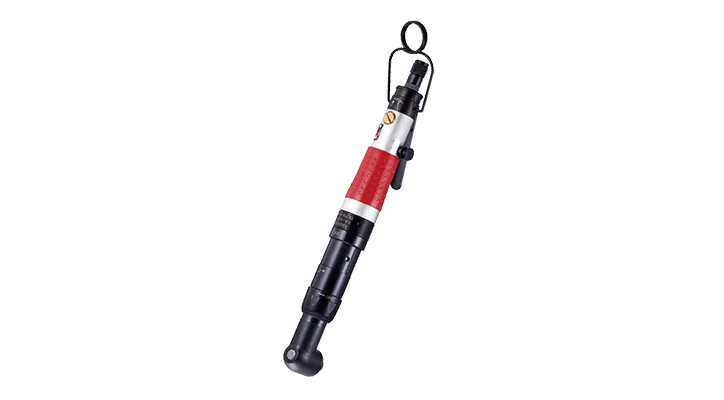

TDCS-D15RW-1300-C	1/4" Sq.
TDCS-D15RX-1300-C	3/8" Sq.
TDCS-D15RQ-800-C	1/4" Hex.	M3-M5	1.4~4.5 N.m (12.4~40 in-lb)	800 rpm	0.98 kg	1/8"	81 dB(A)	4.5 l/s (10 cfm)
TDCS-D15RW-800-C	1/4" Sq.
TDCS-D15RX-800-C	3/8" Sq.
TDCS-D15RQ-650-C	1/4" Hex.	M3-M5	1.4~6 N.m (12.4~53 in-lb)	650 rpm	0.98 kg	1/8"	81 dB(A)	4.5 l/s (10 cfm)
TDCS-D15RW-650-C	1/4" Sq.
TDCS-D15RX-650-C	3/8" Sq.
TDCS-D15RQ-500-C	1/4" Hex.	M3-M5	1.4~7 N.m (12.4~62 in-lb)	500 rpm	0.98 kg	1/8"	81 dB(A)	4.5 l/s (10 cfm)
TDCS-D15RW-500-C	1/4" Sq.
TDCS-D15RX-500-C	3/8" Sq.
TDCS-D20RQ-2200-C	1/4" Hex.	M3-M4	1.2~3 N.m (10.6~27 in-lb)	2200 rpm	1.14 kg	1/4"	78 dB(A)	7 l/s (15 cfm)
TDCS-D20RW-2200-C	1/4" Sq.
TDCS-D20RX-2200-C	3/8" Sq.
TDCS-D20RQ-1900-C	1/4" Hex.	M3-M4	1.4~4 N.m (12.4~35 in-lb)	1900 rpm	1.14 kg	1/4"	78 dB(A)	7 l/s (15 cfm)
TDCS-D20RW-1900-C	1/4" Sq.
TDCS-D20RX-1900-C	3/8" Sq.
TDCS-D20RQ-1300-C	1/4" Hex.	M3-M5	1.4~6.5 N.m (12.4~58 in-lb)	1300 rpm	1.14 kg	1/4"	78 dB(A)	7 l/s (15 cfm)
TDCS-D20RW-1300-C	1/4" Sq.
TDCS-D20RX-1300-C	3/8" Sq.
TDCS-D20RQ-700-C	1/4" Hex.	M4-M5	2~8 N.m (17.7~71 in-lb)	700 rpm	1.14 kg	1/4"	78 dB(A)	7 l/s (15 cfm)
TDCS-D20RW-700-C	1/4" Sq.
TDCS-D20RX-700-C	3/8" Sq.
TDCS-D30RQ-480-C	1/4" Hex.	M5-M6	6~12 N.m (53~106 in-lb)	480 rpm	1.28 kg	1/4"	78 dB(A)	7 l/s (15 cfm)
TDCS-D30RW-480-C	1/4" Sq.
TDCS-D30RX-480-C	3/8" Sq.
TDCS-D30RQ-320-C	1/4" Hex.	M5-M6	6~15 N.m (53~133 in-lb)	320 rpm	1.28 kg	1/4"	78 dB(A)	7 l/s (15 cfm)
TDCS-D30RW-320-C	1/4" Sq.
TDCS-D30RX-320-C	3/8" Sq.
TDCS-D40RX-400-C	3/8" Sq.	M6-M8	10~18 N.m (89~160 in-lb)	400 rpm	1.75 kg	1/4"	83 dB(A)	8 l/s (17 cfm)
TDCS-D50RX-270-C	3/8" Sq.	M8	14~24 N.m (124~212 in-lb)	270 rpm	1.75 kg	1/4"	83 dB(A)	8 l/s (17 cfm)
TDCS-D60RX-120-C	3/8" Sq.	M8-M10	24~45 N.m (212~400 in-lb)	120 rpm	2.03 kg	1/4"	83 dB(A)	8 l/s (17 cfm)
TDCS-D60RY-120-C	1/2" Sq.
TDCS-D70RX-100	3/8" Sq.	M10-M12	35~60 N.m (310~530 in-lb)	100 rpm	2.03 kg	1/4"	83 dB(A)	8 l/s (17 cfm)
TDCS-D70RY-100	1/2" Sq.
