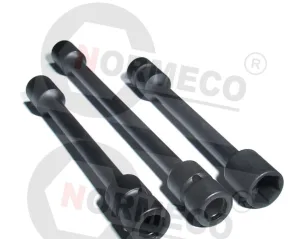

6 POINT ANTI VIBRATION SOCKETS EXTENDED LENGTH
6 point anti vibration sockets extented length

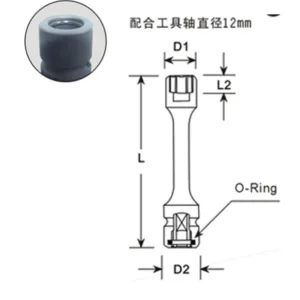

| Order No. | Size (mm) | D2 (mm) | D1 (mm) | L2 (mm) | L (mm) |
|---|---|---|---|---|---|
| 80882A08 | 8 | 19 | 12.5 | 8 | 100 |
| 80882A10 | 10 | 19 | 15.5 | 8 | 100 |
| 80882A12 | 12 | 19 | 18 | 9 | 100 |
| 80882A13 | 13 | 19 | 20 | 9 | 100 |
| 80882A14 | 14 | 19 | 21 | 9 | 100 |
| 80882A15 | 15 | 22 | 22 | 11 | 100 |
| 80882A16 | 16 | 22 | 24 | 11 | 100 |
| 80882A17 | 17 | 22 | 25 | 11 | 100 |
| Order No. | Size (mm) | D2 (mm) | D1 (mm) | L2 (mm) | L (mm) |
|---|---|---|---|---|---|
| 80882B09 | 9 | 19 | 12.5 | 8 | 150 |
| 80882B10 | 10 | 19 | 15.5 | 8 | 150 |
| 80882B12 | 12 | 19 | 18 | 9 | 150 |
| 80882B13 | 13 | 19 | 20 | 9 | 150 |
| 80882B14 | 14 | 19 | 21 | 9 | 150 |
| 80882B15 | 15 | 22 | 22 | 11 | 150 |
| 80882B16 | 16 | 22 | 24 | 11 | 150 |
| 80882B17 | 17 | 22 | 25 | 11 | 150 |
| Order No. | Size (mm) | D2 (mm) | D1 (mm) | L2 (mm) | L (mm) |
|---|---|---|---|---|---|
| 80882D08 | 8 | 19 | 12.5 | 8 | 200 |
| 80882D10 | 10 | 19 | 15.5 | 8 | 200 |
| 80882D12 | 12 | 19 | 18 | 9 | 200 |
| 80882D13 | 13 | 19 | 20 | 9 | 200 |
| 80882D14 | 14 | 19 | 21 | 9 | 200 |
| 80882D15 | 15 | 22 | 22 | 11 | 200 |
| 80882D16 | 16 | 22 | 24 | 11 | 200 |
| 80882D17 | 17 | 22 | 25 | 11 | 200 |
| Order No. | Size (mm) | D2 (mm) | D1 (mm) | L2 (mm) | L (mm) |
|---|---|---|---|---|---|
| 80882E08 | 8 | 19 | 12.5 | 8 | 250 |
| 80882E10 | 10 | 19 | 15.5 | 8 | 250 |
| 80882E12 | 12 | 19 | 18 | 9 | 250 |
| 80882E13 | 13 | 19 | 20 | 9 | 250 |
| 80882E14 | 14 | 19 | 21 | 9 | 250 |
| 80882E15 | 15 | 22 | 22 | 11 | 250 |
| 80882E16 | 16 | 22 | 24 | 11 | 250 |
| 80882E17 | 17 | 22 | 25 | 11 | 250 |
