LTD

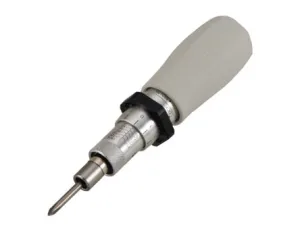

Standard torque screwdriver for tightening small fasteners.
Features
- Non-idling.
- Toggle clutch torque detection mechanism for enhanced accuracy and durability.
- Upon reaching the set torque, it clicks to signal tightening is complete.
- Easy torque adjustment with scale.
- All models include a locking mechanism which prevents changing of torque during use. (LTD15CN to LTD500CN models)
- Hexagonal locker prevents driver from rolling and locker can be replaced with new one.
- Counterclockwise tightening model available upon request. Please contact us.
- Upon your order, we can manufacture LS (Limit Switch) version, which is designed for error-proofing (Pokayoke). Please contact us.
Specifications
| Model Type | LTD15CN | LTD30CN | LTD60CN | LTD120CN | LTD260CN | LTD500CN | LTD1000CN | LTD2000CN2 |
|---|---|---|---|---|---|---|---|---|
| Accuracy | ± 3% | |||||||
| Torque Range (cN･m) | 2～15 | 4～30 | 10～60 | 20～120 | 60～260 | 100～500 | 200～1000 | 400～2000 |
| Grad. | 0.1 | 0.2 | 0.5 | 1 | 2 | 5 | - | - |
| Metric Model | 1.5LTD | 3LTD | 6LTD | 12LTD | 26LTD | 50LTD | 100LTD | LTD200M2 |
| Torque Range (kgf・cm) | 0.2～1.5 | 0.4～3 | 1～6 | 2～12 | 6～26 | 10～50 | 20～100 | 40～200 |
| Grad. | 0.01 | 0.02 | 0.05 | 0.1 | 0.2 | 0.5 | - | - |
| Overall Length (mm) | 101 | 109 | 132 | 149 | 155 | 183 | 247 | - |
| Grip (D1) | 16 | 19.5 | 24 | 30.5 | 33 | 43 | 48 | - |
| Weight (kg) | 0.05 | 0.08 | 0.13 | 0.22 | 0.33 | 0.58 | 1.15 | - |
