acewell

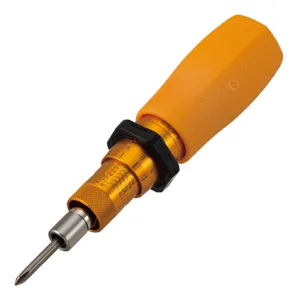

RTD
Torque screwdriver with over-torque prevention rotary-slip mechanism for various applications from mass production to maintenance work.
Features
- Rotary slip style.
- RTD is designed to ratchet freely after reaching the set torque to prevent applying over-torque.
- Toggle clutch torque detection mechanism for enhanced durability.
- Easy torque adjustment with scale.
- All models include the locking mechanism which prevents changing of torque during use.
- Hexagonal locker prevents driver from rolling and locker can be replaced with new one.
- Counterclockwise tightening model available upon request. Please contact us.
Specifications
| Model Type | RTD15CN | RTD30CN | RTD60CN | RTD120CN | RTD260CN | RTD500CN |
|---|---|---|---|---|---|---|
| Accuracy | ± 3% | |||||
| Torque Range (cN・m) | 2～15 | 4～30 | 10～60 | 20～120 | 60～260 | 100～500 |
| Grad. | 0.1 | 0.2 | 0.5 | 1 | 2 | 5 |
| Metric Model | 1.5RTD | 3RTD | 6RTD | 12RTD | 26RTD | 50RTD |
| Torque Range (kgf・cm) | 0.2～1.5 | 0.4～3 | 1～6 | 2～12 | 6～26 | 10～50 |
| Grad. | 0.01 | 0.02 | 0.05 | 0.1 | 0.2 | 0.5 |
| Overall Length (mm) | 101 | 109 | 132 | 149 | 155 | — |
| Grip (D1) | 16 | 19.5 | 24 | 30.5 | 33 | — |
| Weight (kg) | 0.05 | 0.08 | 0.16 | 0.27 | 0.32 | — |
