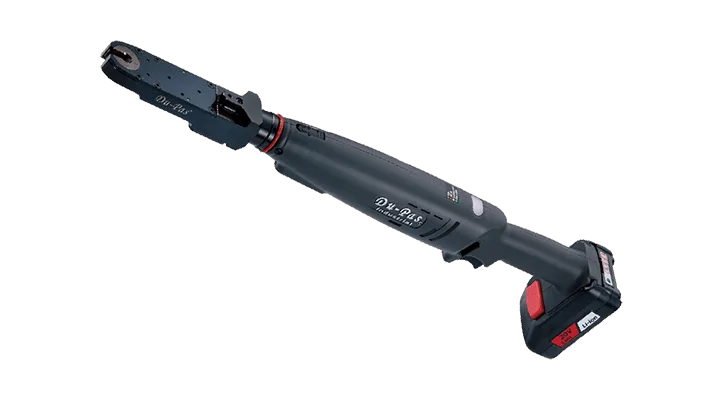

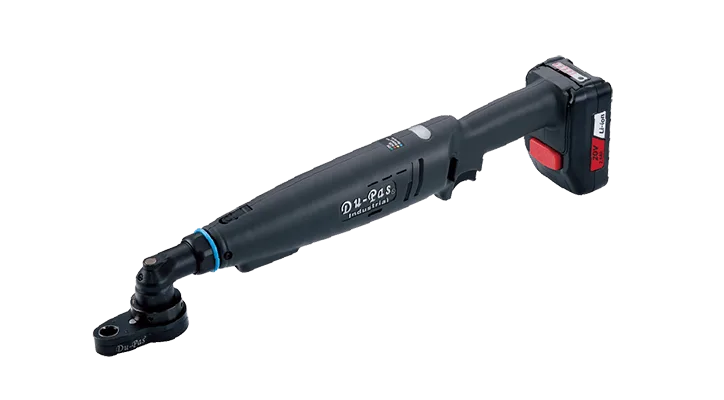

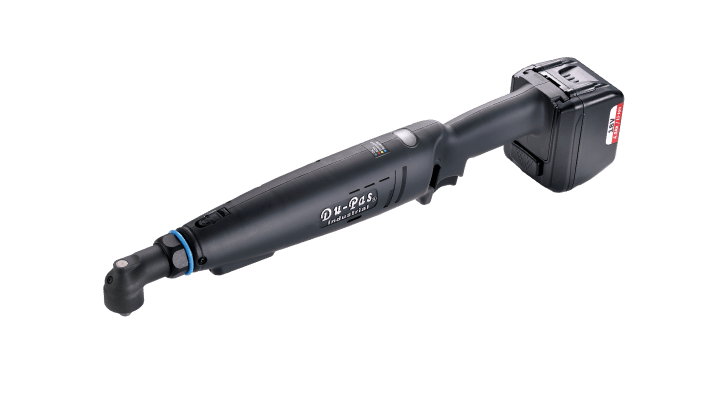

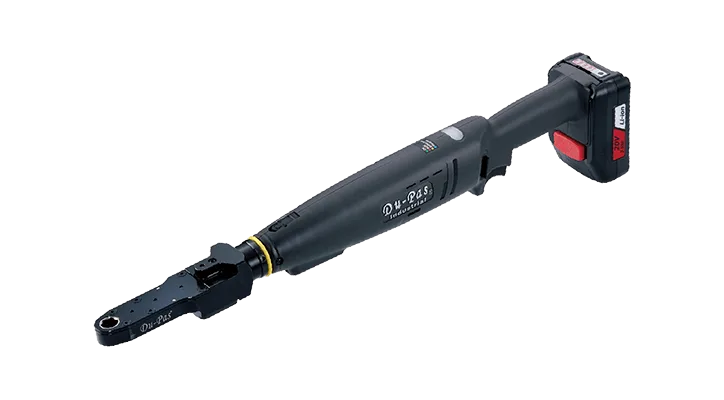

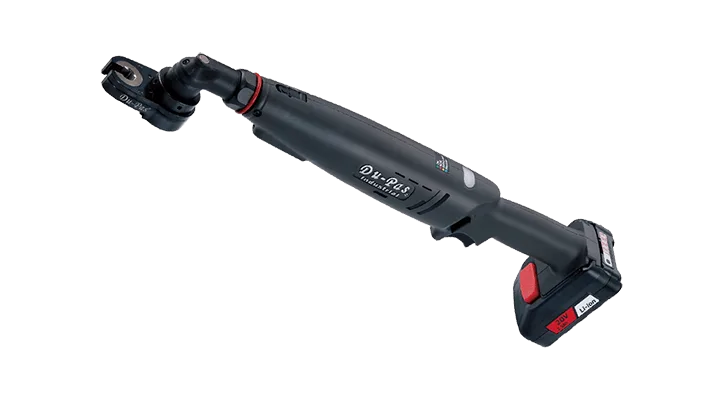

WRTBA SERIES

Cordless shut off angle wrenches / screwdrivers

Product Showcase

MODEL	Volt.	Drive Size	Screw Size	Weight	Vibration Value	Noise Level	Free Speed	Torque Range (N.m)
WRTBA-10	20	1/4" Hex.	M4-M5	1.5 kg (3.3 lb)	<2.5 m/s²	<75 dB(A)	400~1000 rpm	3-12
WRTBA-10S2	20	1/4" Sq.
WRTBA-10S3	20	3/8" Sq.
WRTBA-16	20	1/4" Hex.	M5-M6	1.5 kg (3.3 lb)	<2.5 m/s²	<75 dB(A)	300~600 rpm	5-18
WRTBA-16S2	20	1/4" Sq.
WRTBA-16S3	20	3/8" Sq.
WRTBA-30S3	20	3/8" Sq.	M6-M8	1.5 kg (3.3 lb)	<2.5 m/s²	<75 dB(A)	250~450 rpm	8-30
WRTBA-35S3	20	3/8" Sq.	M6-M8	1.6 kg (3.52 lb)	<2.5 m/s²	<75 dB(A)	200~350 rpm	10-35

MODEL	Volt.	Drive Size	Screw Size	Weight	Vibration Value	Noise Level	Free Speed	Torque Range (N.m)
WRTBA-50S3	20	3/8" Sq.	M6-M10	2.0 kg (4.4 lb)	<2.5 m/s²	<75 dB(A)	200 rpm	22-50
WRTBA-50S4	20	1/2" Sq.	M6-M10	2.0 kg (4.4 lb)	<2.5 m/s²	<75 dB(A)	200 rpm	22-50
WRTBA-60S3	20	3/8" Sq.	M8-M12	2.0 kg (4.4 lb)	<2.5 m/s²	<75 dB(A)	160 rpm	25-60
WRTBA-60S4	20	1/2" Sq.	M8-M12	2.0 kg (4.4 lb)	<2.5 m/s²	<75 dB(A)	160 rpm	25-60
WRTBA-70S3	20	3/8" Sq.	M8-M12	2.5 kg (5.5 lb)	<2.5 m/s²	<75 dB(A)	160 rpm	30-70
WRTBA-70S4	20	1/2" Sq.	M8-M12	2.5 kg (5.5 lb)	<2.5 m/s²	<75 dB(A)	160 rpm	30-70
WRTBA-90S4	20	1/2" Sq.	M10-M14	2.5 kg (5.5 lb)	<2.5 m/s²	<75 dB(A)	90 rpm	40-90
