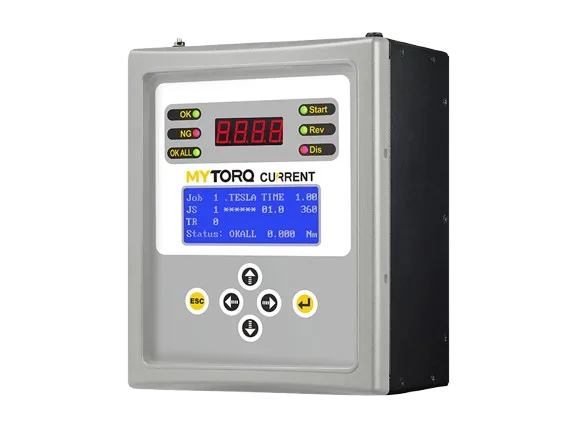

MY-CURRENT Controller

my current controller
Controller

Features
MYTORQ current control tightening system offers high torque accuracy and repeatability. It allows users to fully control and monitor the entire screw rundown process. Many costly tightening errors such as floating screw, stripped screw, over torquing…etc. can be eliminated. Users can adjust current level to achieve tightening goals with consistent tightening results. Parameters are saved in controller and can be adjusted to optimize tightening process for all kinds of joints. It’s compact light weight design makes it easy for long time operation.
Specification
Specification | MY-CURRENT |
---|---|
Model | MY-CURRENT |
Input Voltage | AC 115V / 230V |
Input Frequency | 50 - 60Hz |
Input Current | 6.3A |
Output Voltage | DC 40V |
Power Consumption (Max) | 9A |
Power Consumption | 360W |
External Dimensions | 241 x 185 x 127 (mm) |
Weight | 3.46 Kg |
Applicable Model | MY-CURRENT Series |
