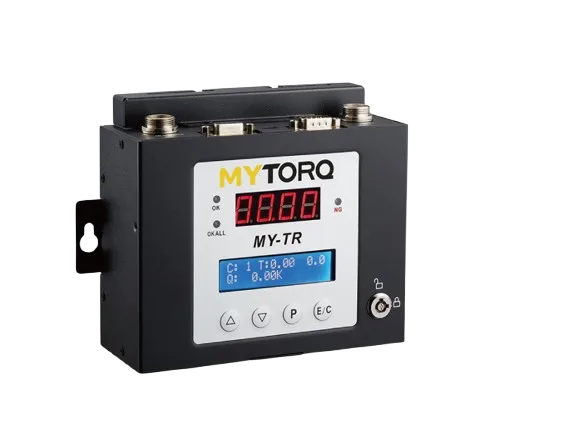

MY-TR
MY-TR
Torque Read Out Controller
Features
- Economy torque readout system allows users to collect assembly data (Time / Torque / Status…etc.)
- Collect assembly data instantly via RS232 / ethernet / Wi-Fi
- Monitor tightening process and prevent costly tightening errors
- Various I/O ports to connect to your PLC and automation equipment
- Save up to 99 programs
- Use up to 8 programs in 1 sequence
- Comes with free setting program & data acquisition software
- User friendly interface
- Entry level of Industry 4.0 tool

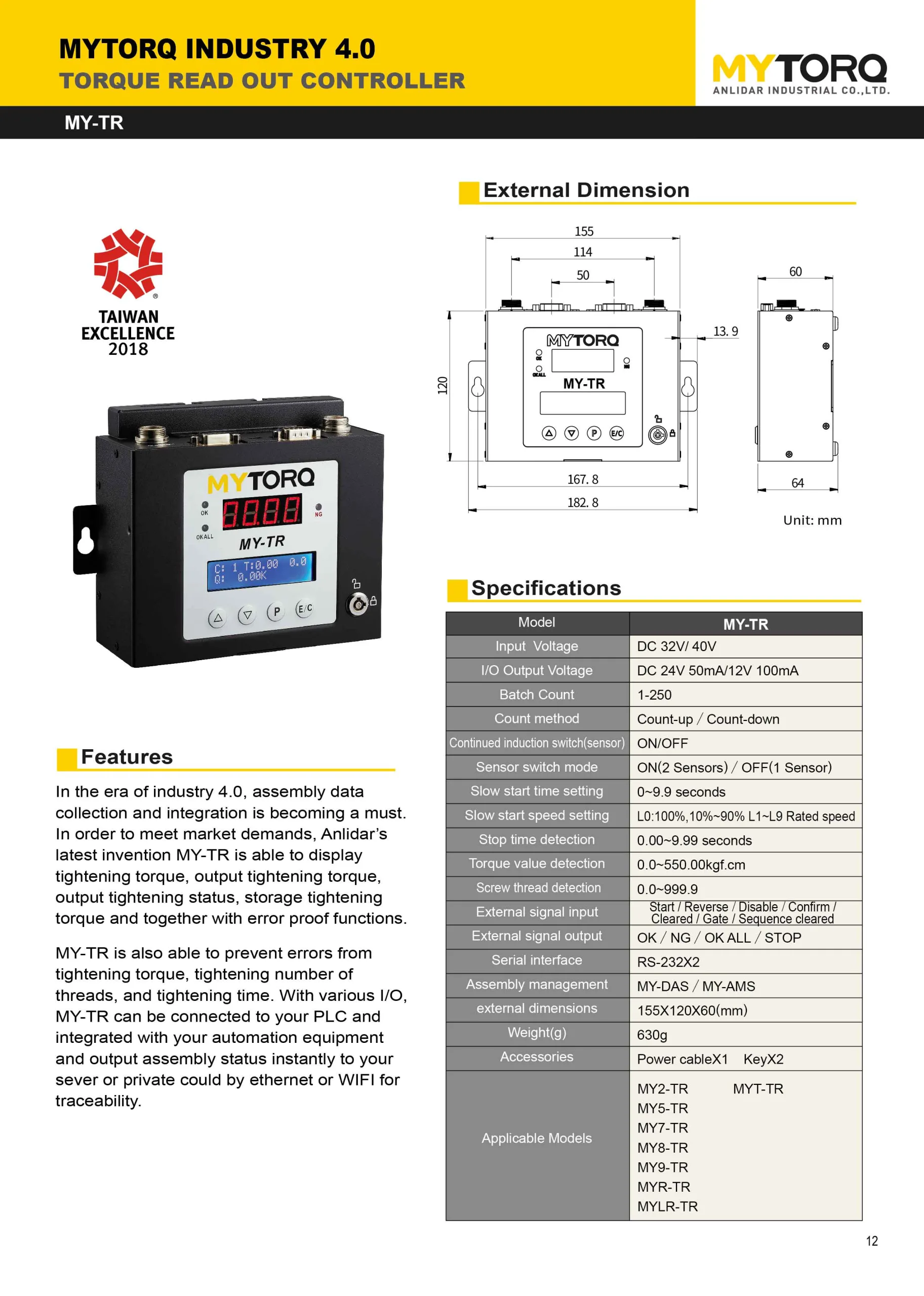

Specification
| Specification | MY-TR |
|---|---|
| Model | MY-TR |
| Input Voltage | DC 32V / 40V |
| I/O Output Voltage | DC 24V 50mA / 12V 100mA |
| Batch Count | 1 - 250 |
| Count Method | Count-up／Count-down |
| Continued Induction Switch (Sensor) | ON / OFF |
| Sensor Switch Mode | ON (2 Sensors)／OFF (1 Sensor) |
| Slow Start Time Setting | 0 ~ 9.9 seconds |
| Slow Start Speed Setting | L0:100%, 10% ~ 90% (L1 ~ L9 rated speed) |
| Stop Time Detection | 0.00 ~ 9.99 seconds |
| Torque Value Detection | 0.0 ~ 550.00 kgf.cm |
| Screw Thread Detection | 0.0 ~ 999.9 |
| External Signal Input | Start / Reverse / Disable / Confirm / Cleared / Gate / Sequence Cleared |
| External Signal Output | OK / NG / OK ALL / STOP |
| Serial Interface | RS-232 × 2 |
| Assembly Management | MY-DAS／MY-AMS |
| External Dimensions | 155 × 120 × 60 (mm) |
| Weight | 630g |
| Applicable Models |
MY2-TR, MY5-TR, MY7-TR, MY8-TR, MY9-TR, MYR-TR, MYLR-TR, MYT-TR |
