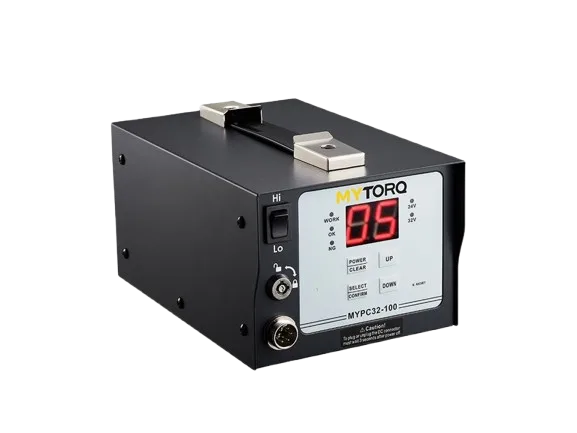

MYPC32-100 ERROR PROOF / POWER SUPPLY
Power Controller
MYPC32-100
Power Controller
Features
- Easy to set up
- Save up to 5 programs
- Use up to 5 programs in 1 sequence
- Timer error proof system to avoid costly tightening error
- Various I/O ports to connect to your PLC and automation equipment
- Buzzer alert and NG lock functions to avoid operators passing defective workpiece to next station
| Model | MYPC32-100 |
|---|---|
| Input Voltage | AC100~240V 50/60HZ |
| Output Voltage | DC32V/24V 1.875A |
| Power Consumption | 60W |
| Count | 1~99 |
| Count Method | Count-up／Count-down |
| Work with Sensor | ON/OFF |
| GATE Sensor | ON (2 Sensors) / OFF (1 Sensor) |
| Slow-start Time Adjustable | 0~9.9 seconds |
| Slow-start Speed Adjustable | L0: 100％, 35％~85％ L0~L9 Rated Speed |
| Running Time Limit - LO | 0.00~9.99 seconds |
| Running Time Limit - HI | 0.0~9.9 seconds |
| Reminder Mode | ON／OF／FF／EF with LED and buzzer |
| Auto ZERO | ON/OFF |
| External Inputs | Forward／Reverse／Disable／Confirm／Sensor／Clear |
| External Outputs | OK / NG / OK ALL |
| Screwdriver Control | HI/LO: Slow-Start |
| External Dimensions (mm) | 200 x 130 x 100 mm |
| Weight (kg) | 1.57 |
| Applicable Models | MY2 series MY5 series MY7 series |
